    C3 965BE for the TWKR in all of us

    The last time I did a major review, it was entitled "955 Unleashed".

    This time I would like to introduce AMD's latest flagship processor, the C3 Revision 965 BE.

    I made a few changes to the review method. Last time if you recall, I worked strictly in Windows XP, but this time I ran a multitude of benches in both XP and Vista.

    I would like to take this time to thank AMD for giving me the oppurtunity once again to review and sample one of their latest and greatest CPU's.

    Special thanks also goes out to EnJoY and MSIMAX for taking time out of their schedules to come and bench with me.

    That said let me cut the chit chat short and get to the results.

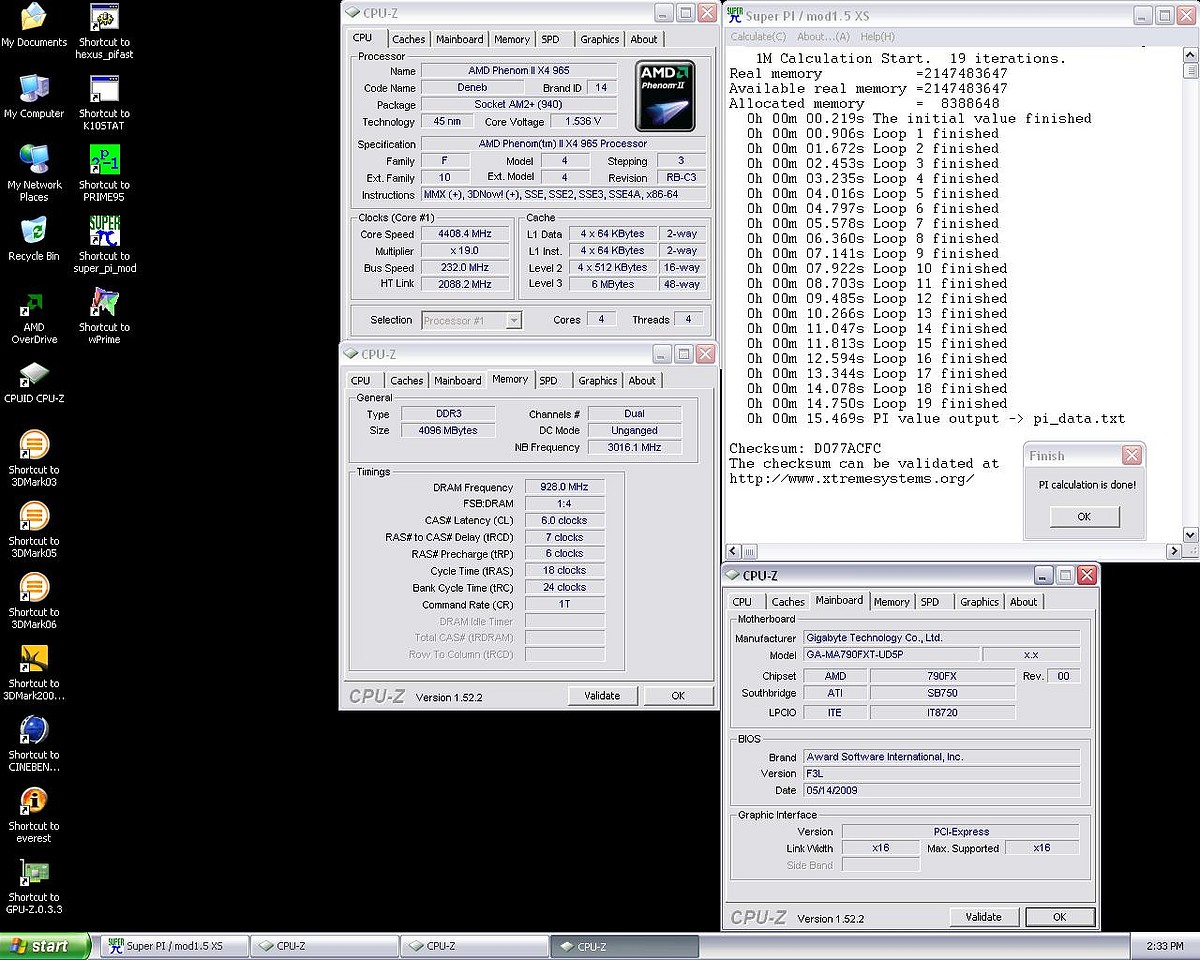

    AIR bench configuration
    AMD phenom II 965BE C3 ( review sample )
    Gigabyte 790 FXT-UD5P
    Corsair dominator GT 1866 7-8-7
    PC power & cooling 860 + 1200W
    Air heatsinks used Xigamtek 1284, True 120, megahalems
    2x 4870x2 for 3d, some 2d with a 2600 pro

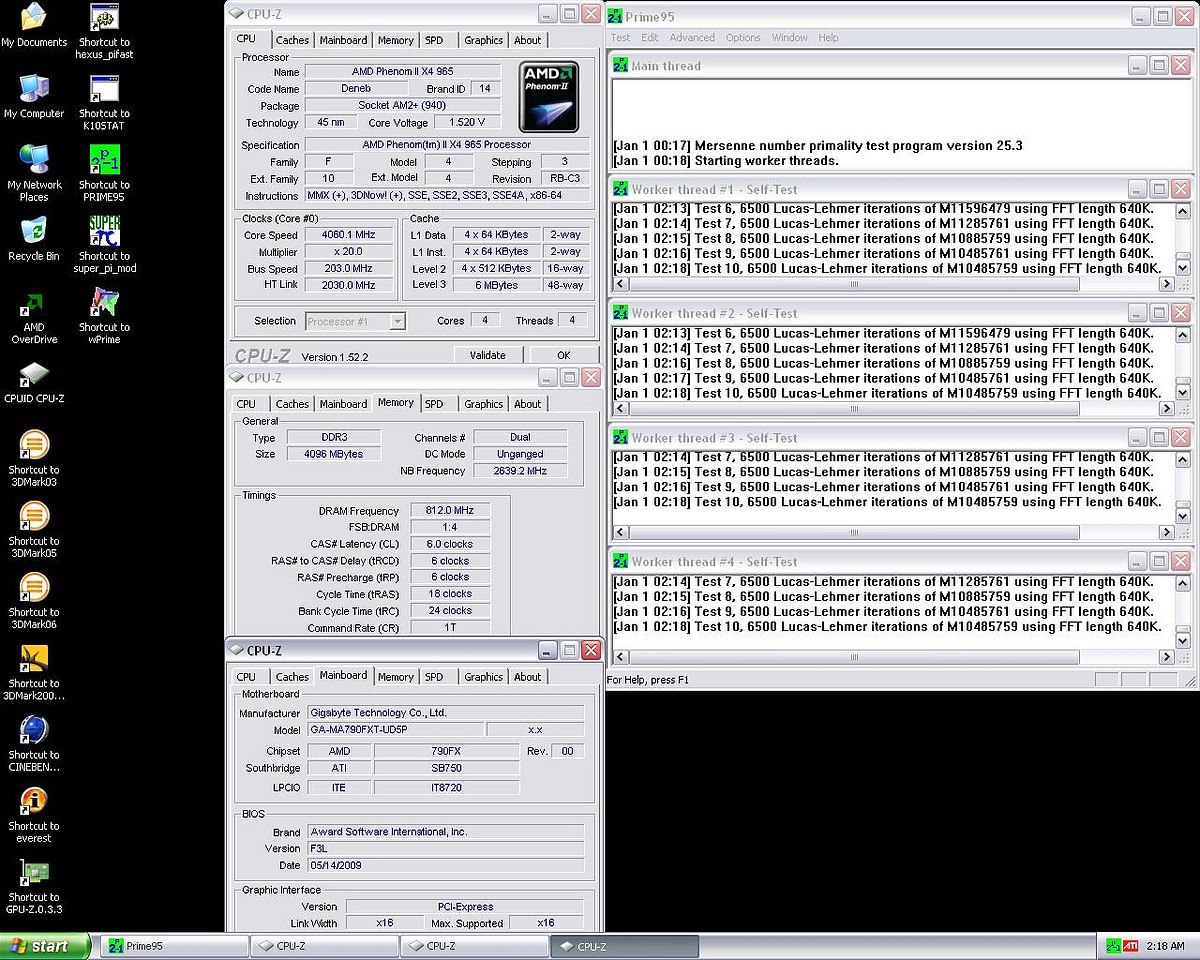

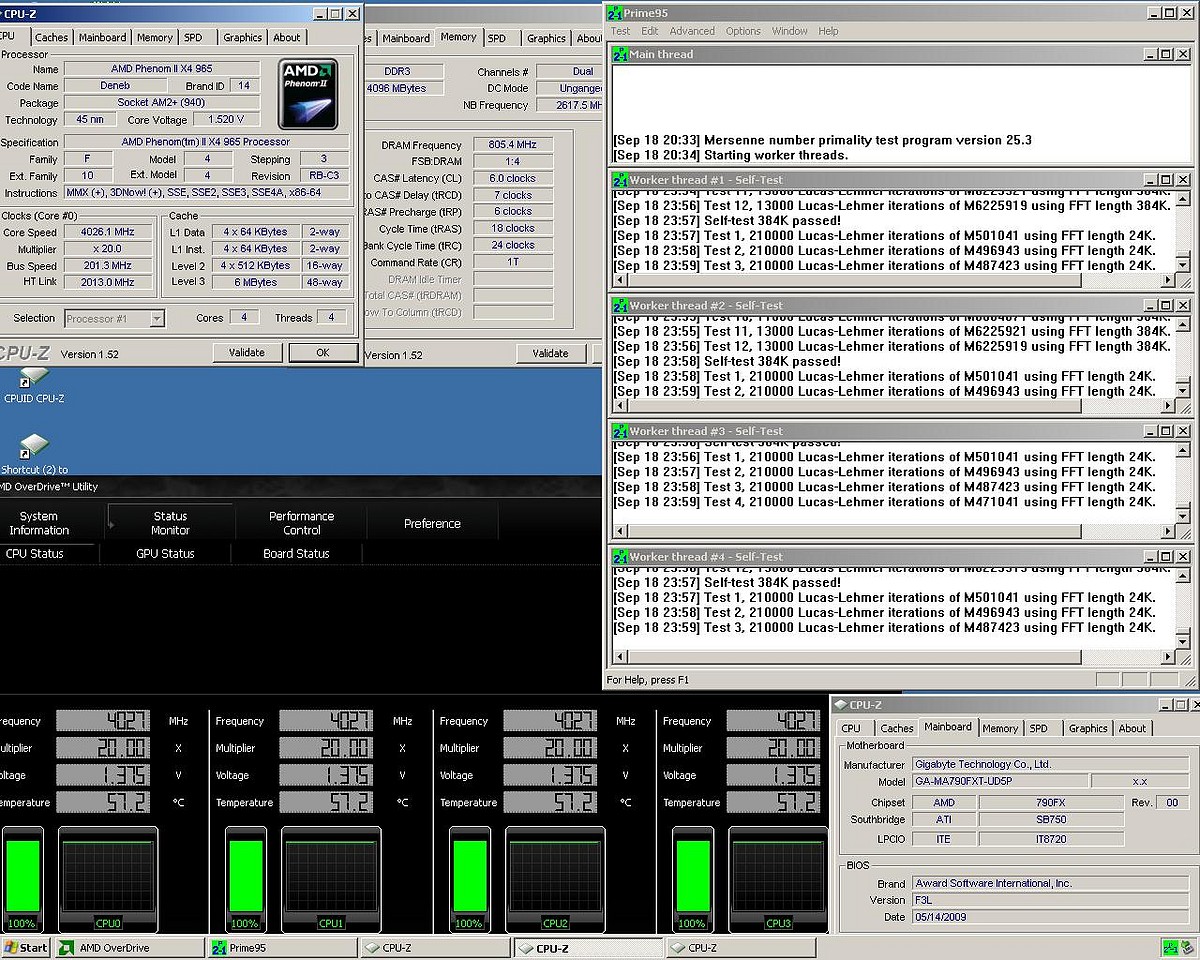

    First I set a baseline on an XP install that was due for a reformat. I used prime 95 with an extremely low flow fan and documented temps for those interested.




    Now with a fresh install, I began baby stepping it up with a more aggressive fan setup.





    Arrived at this for a final.

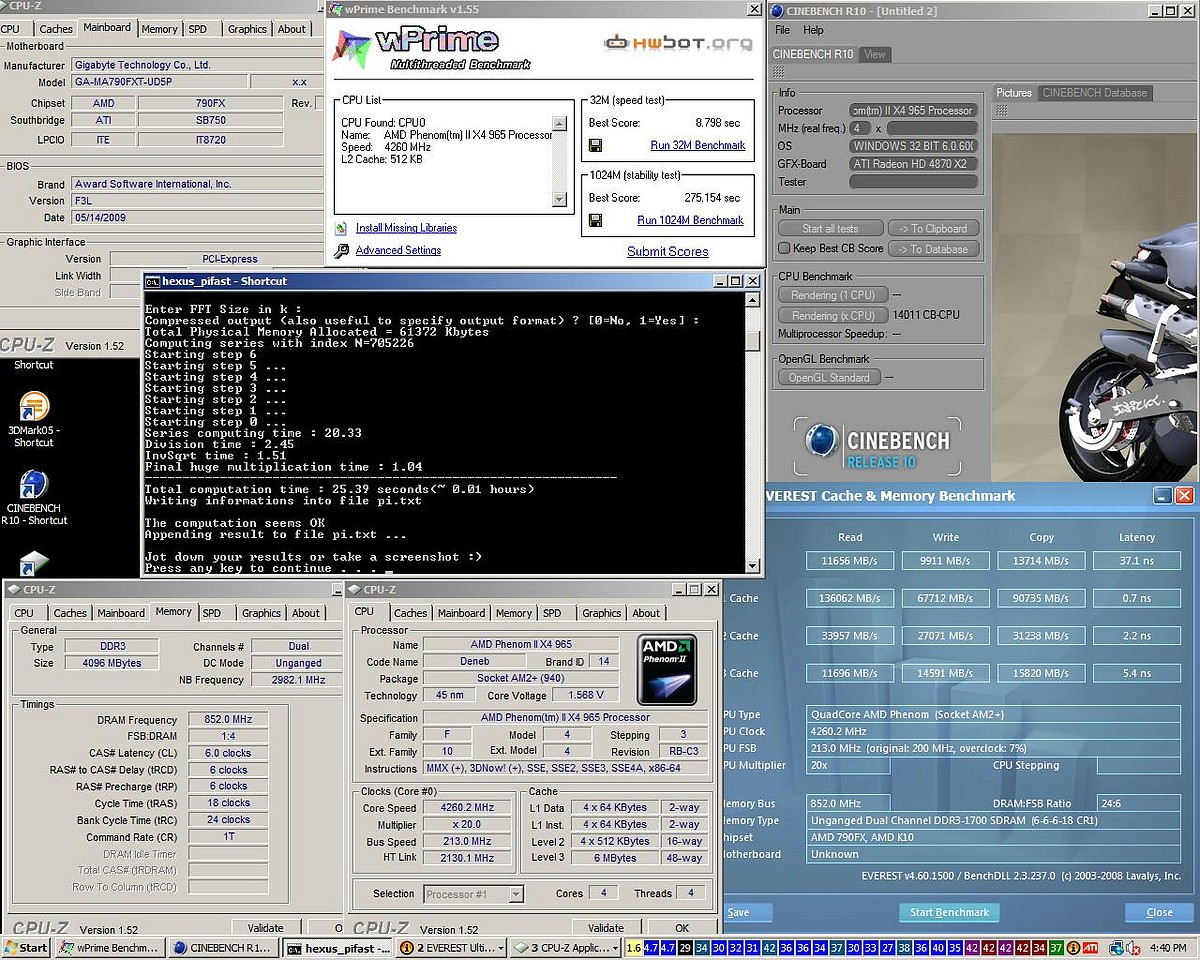

    Next I tackled benching stability.

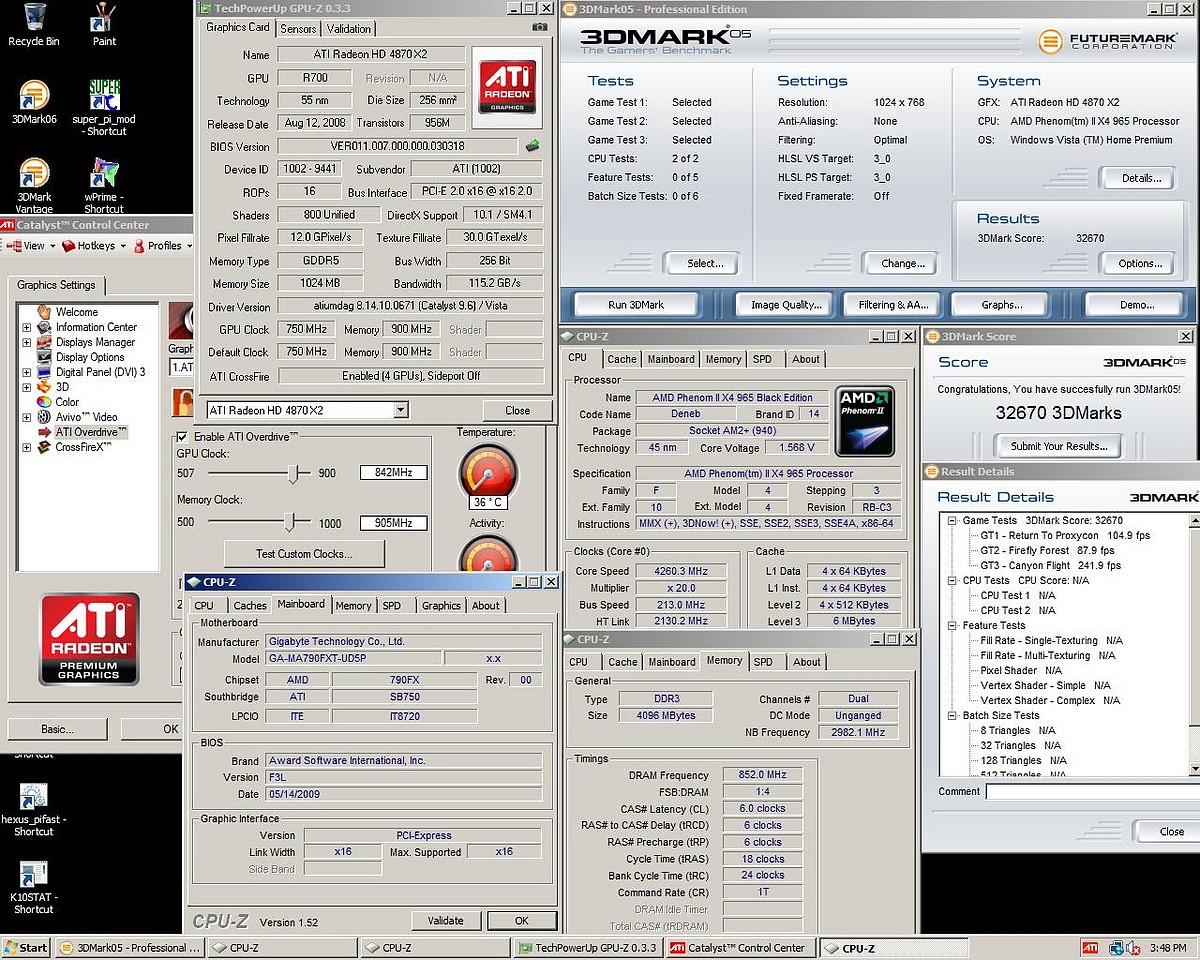

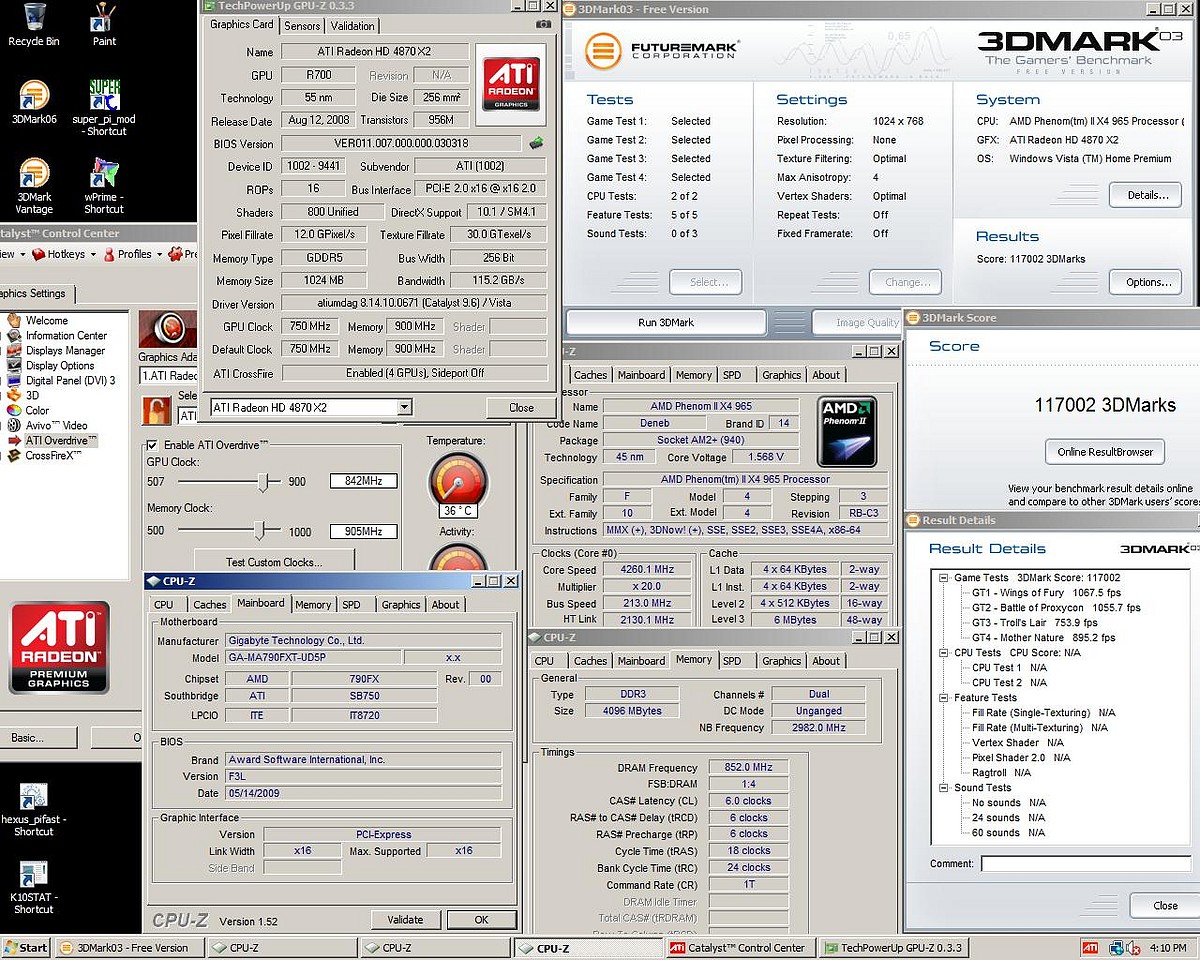

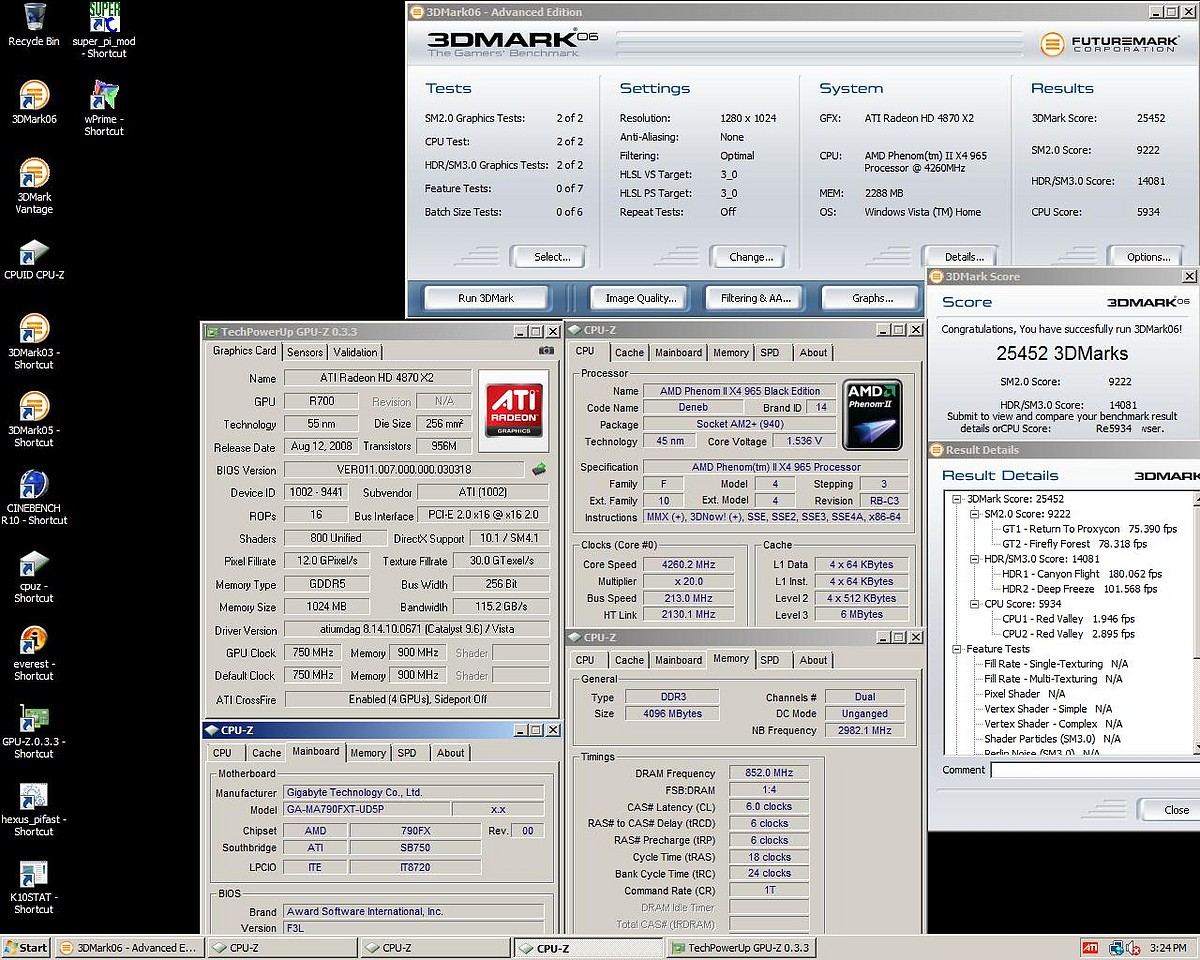

    Time for some 3d. I benched vantage at the same speed as well, but I appear to have lost the screenshot.










    Next I tested the IMC to see how far it could go.




    After that, I introduced a higher NB into the picture to find the combined limits.





    Then I threw in a high cpu clock and put it all together.

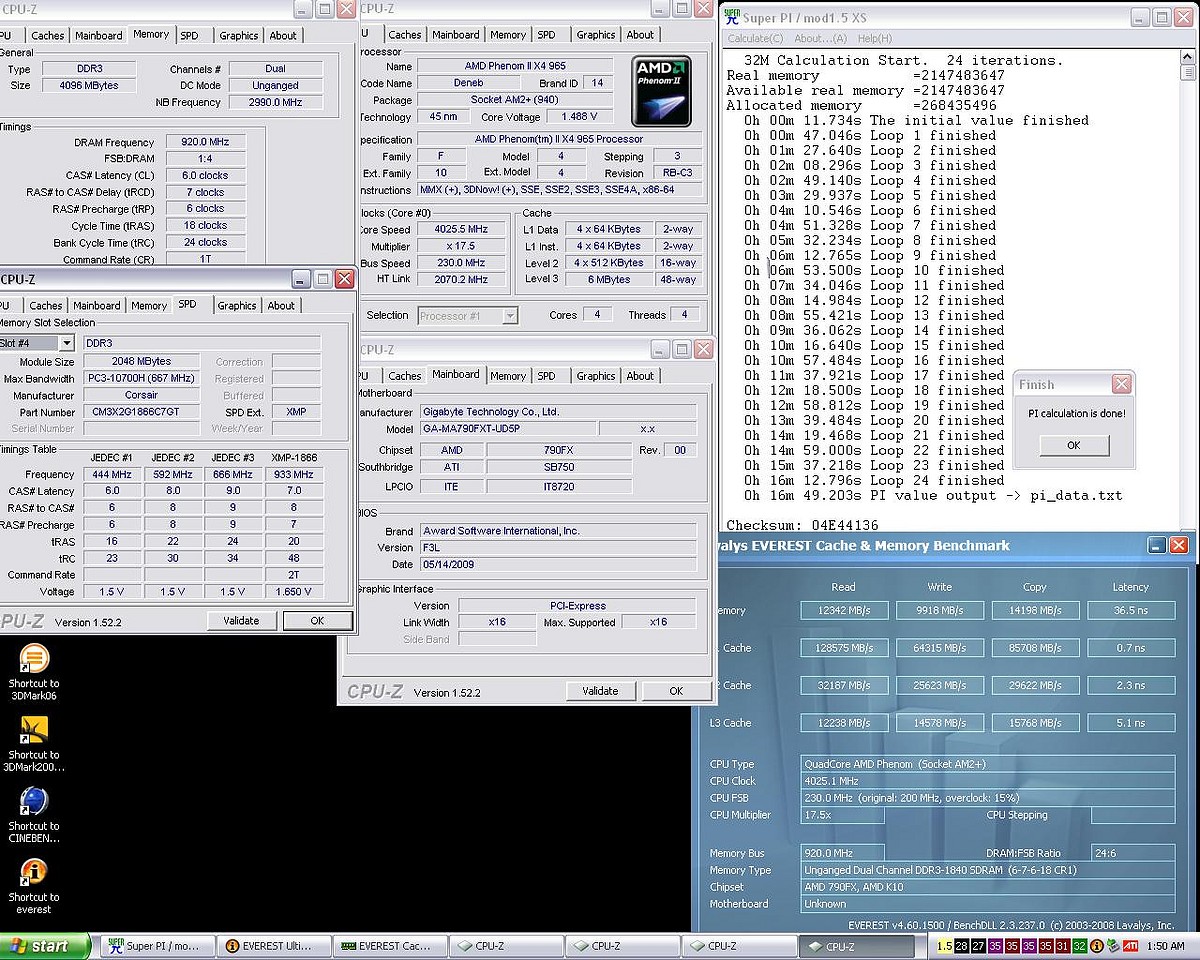

    A little bit of 1m.




    I did not bother with cpu-z validations for all cooling classes this time around.

    Instead I opted for trying to clock all cores up while maintaining a high NB.





    Now it's time for some extreme water testing...

    I am not going to narrate much for the remainder unless necessary as I beleive I screwed up a couple shots somewhere in this review.

    None the less, I feel the results are fairly self explanatory.

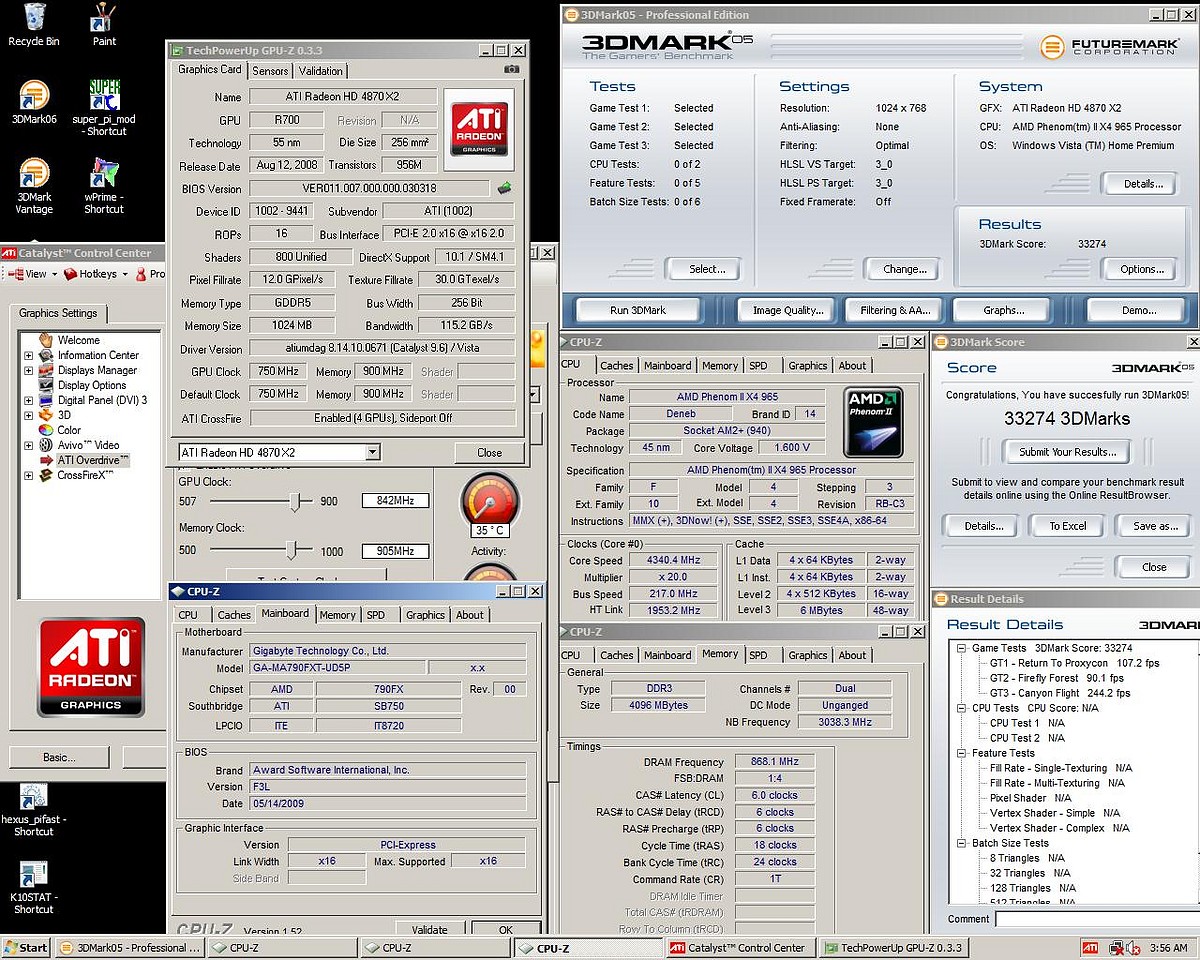

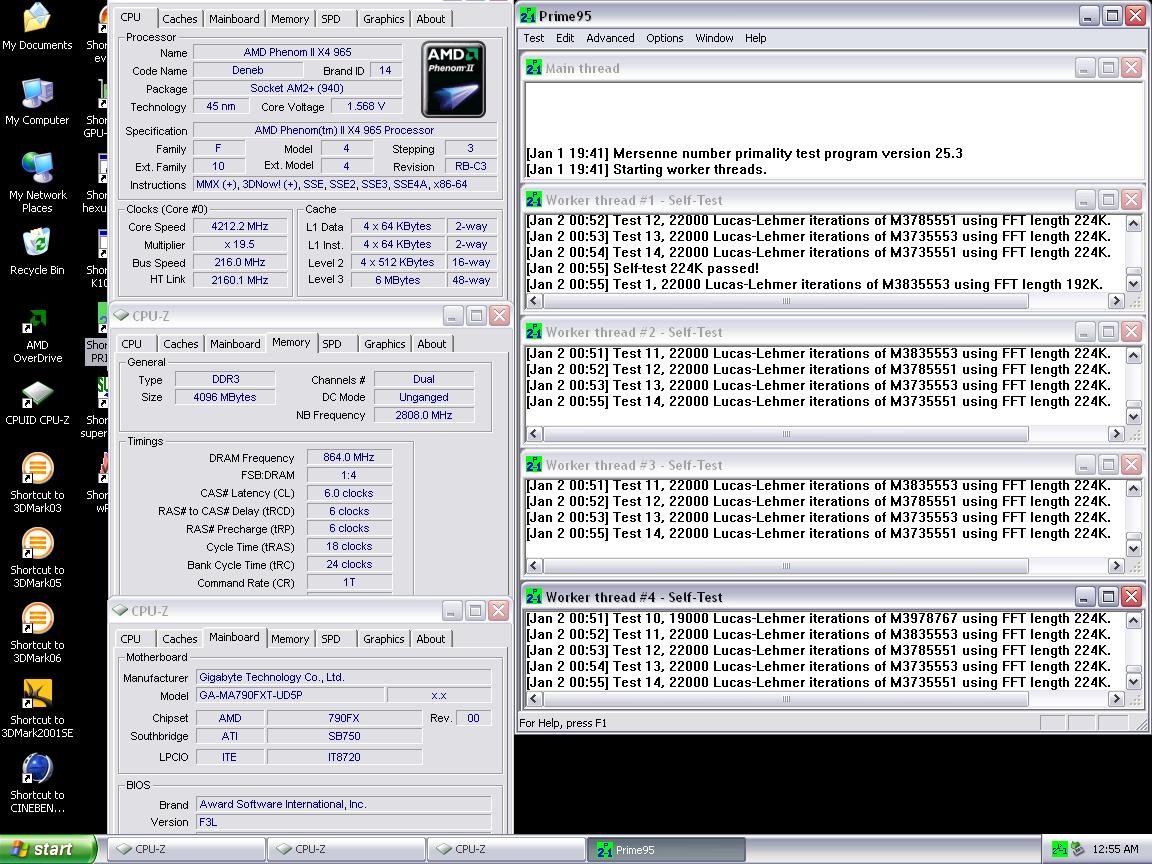

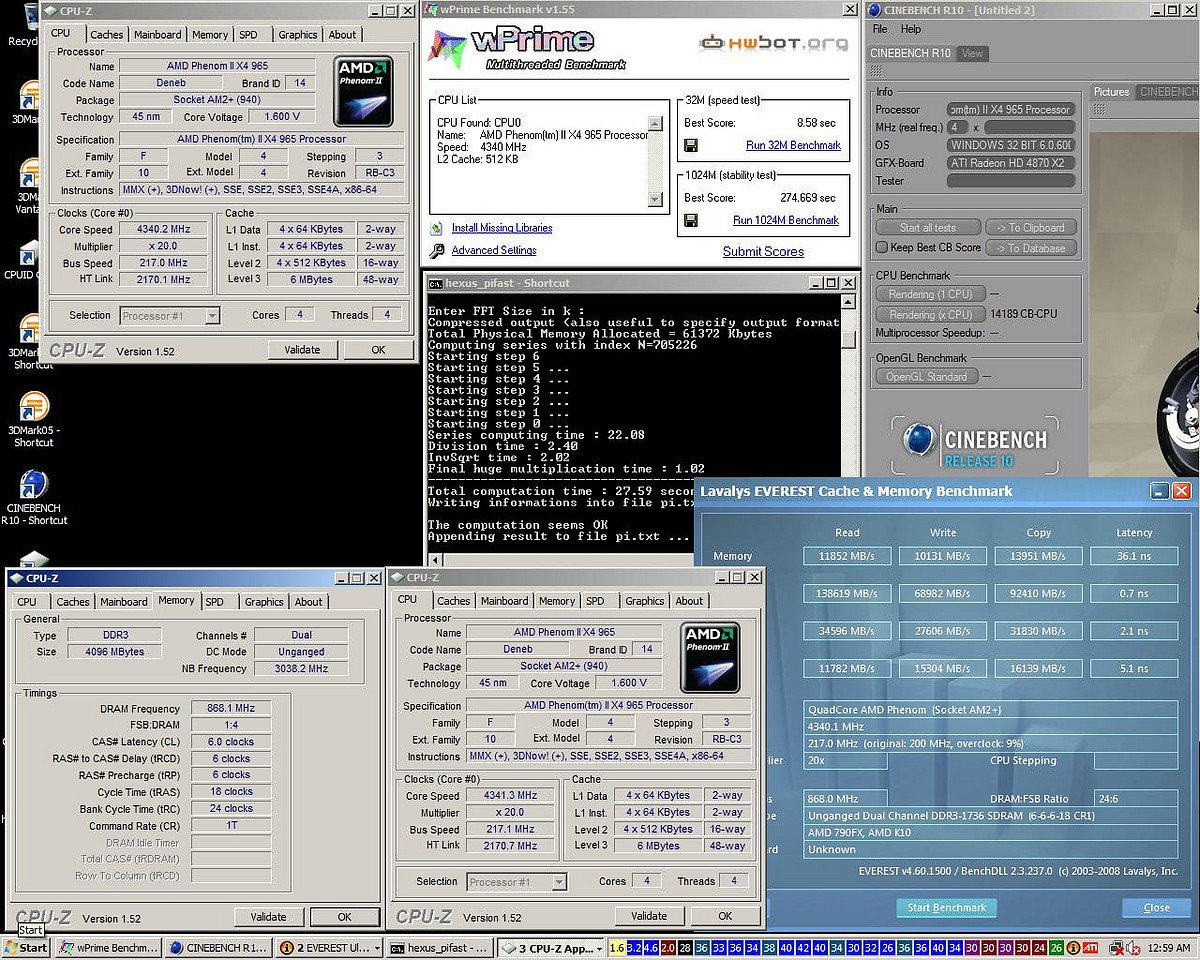

    Water bench configuration
    AMD phenom II 965BE C3 ( review sample )
    Gigabyte 790 FXT-UD5P
    Corsair dominator GT 1866 7-8-7
    PC power & cooling 860 + 1200W
    Custom water cooling with DTEK fusion block
    2x 4870x2 for 3d, some 2d with a 2600 pro

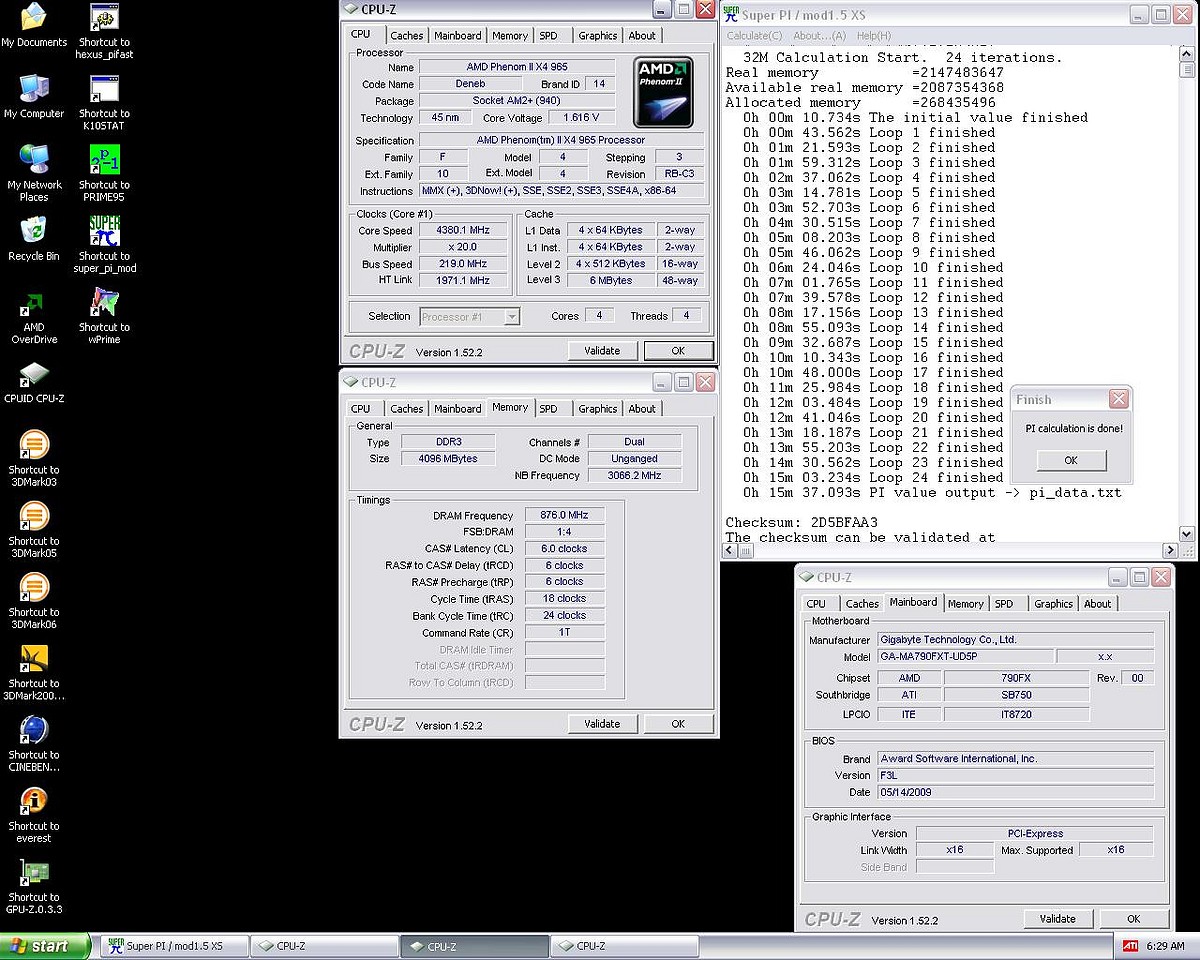

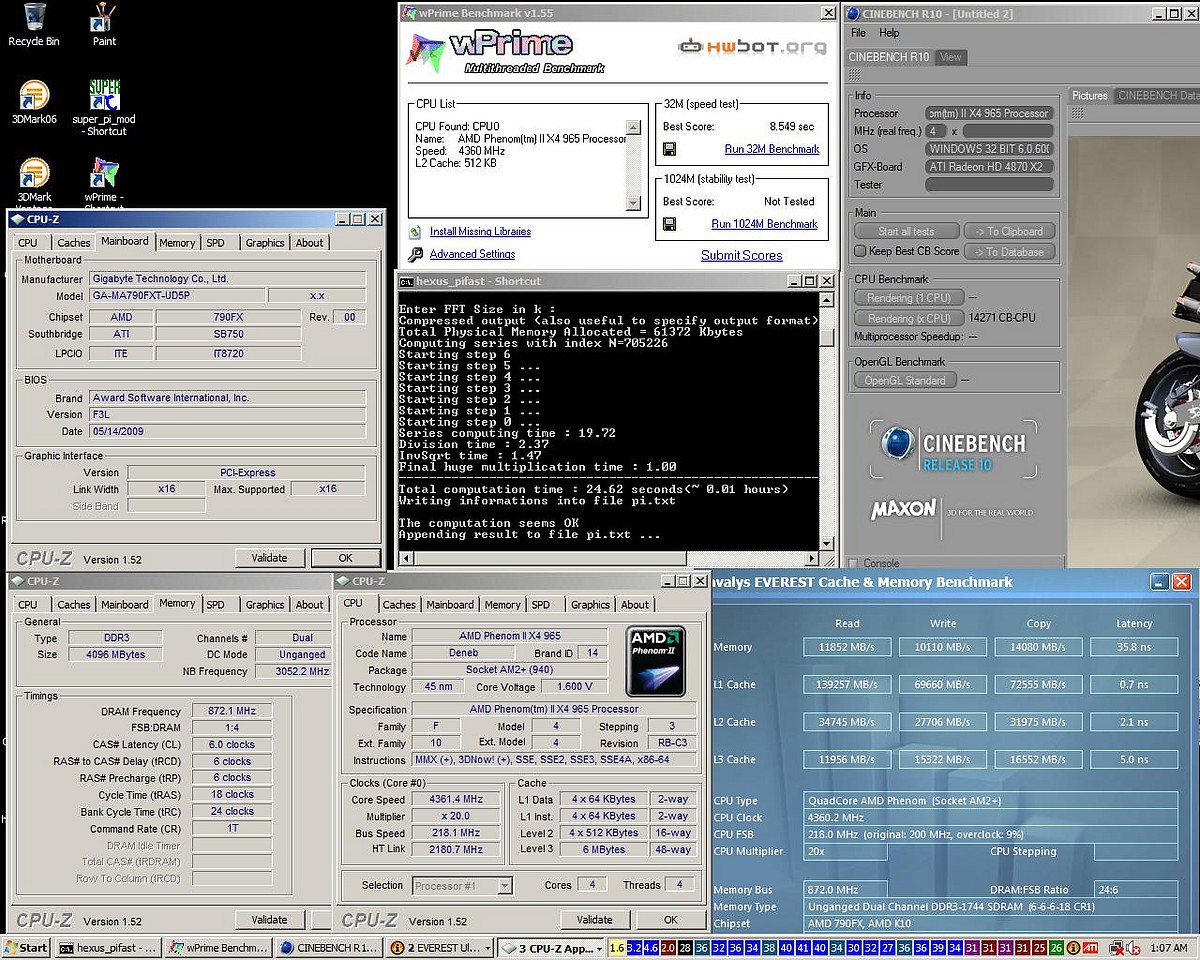

    Something was bugged with this pifast run and only a reboot would fix it.

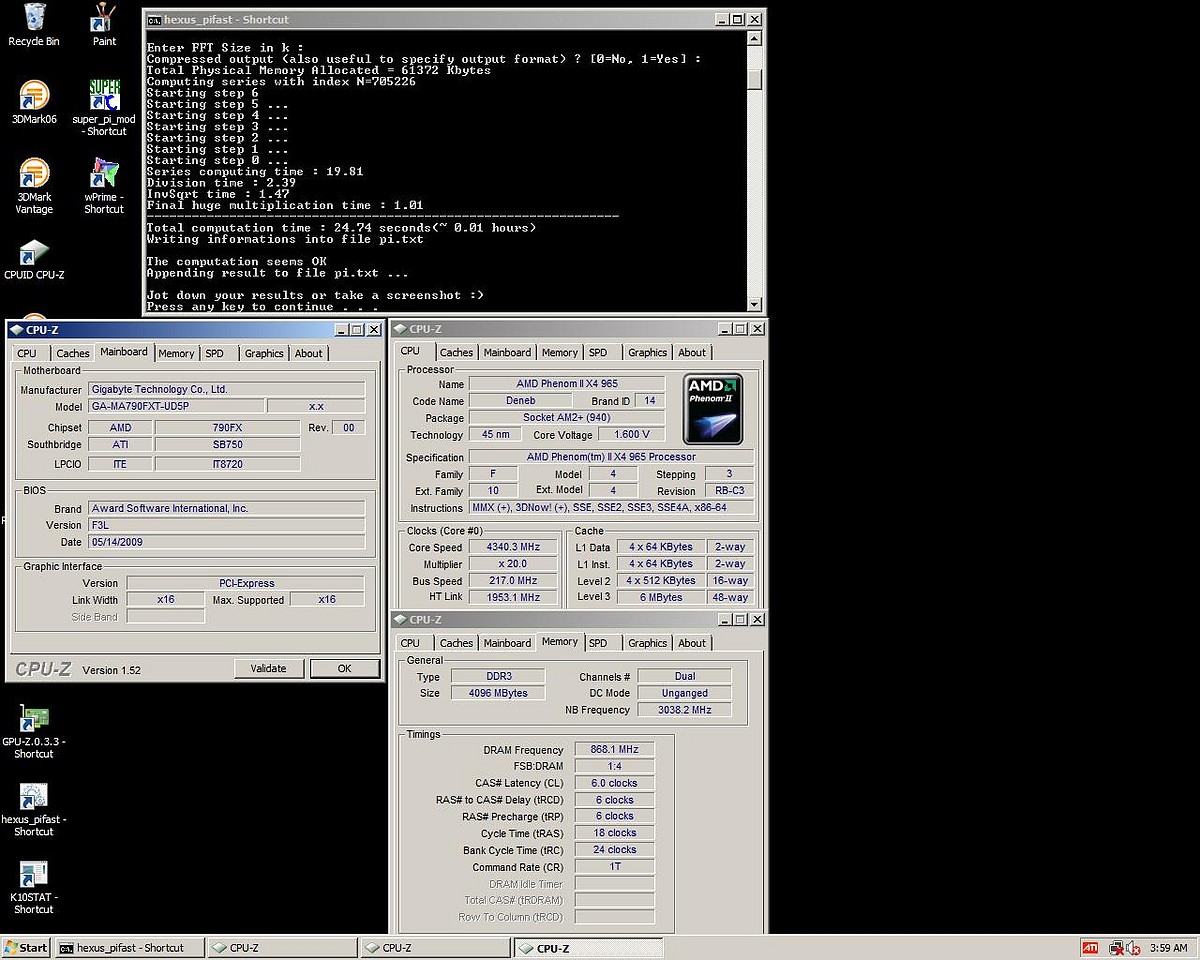

    Unbugged pifast ran at same settings.

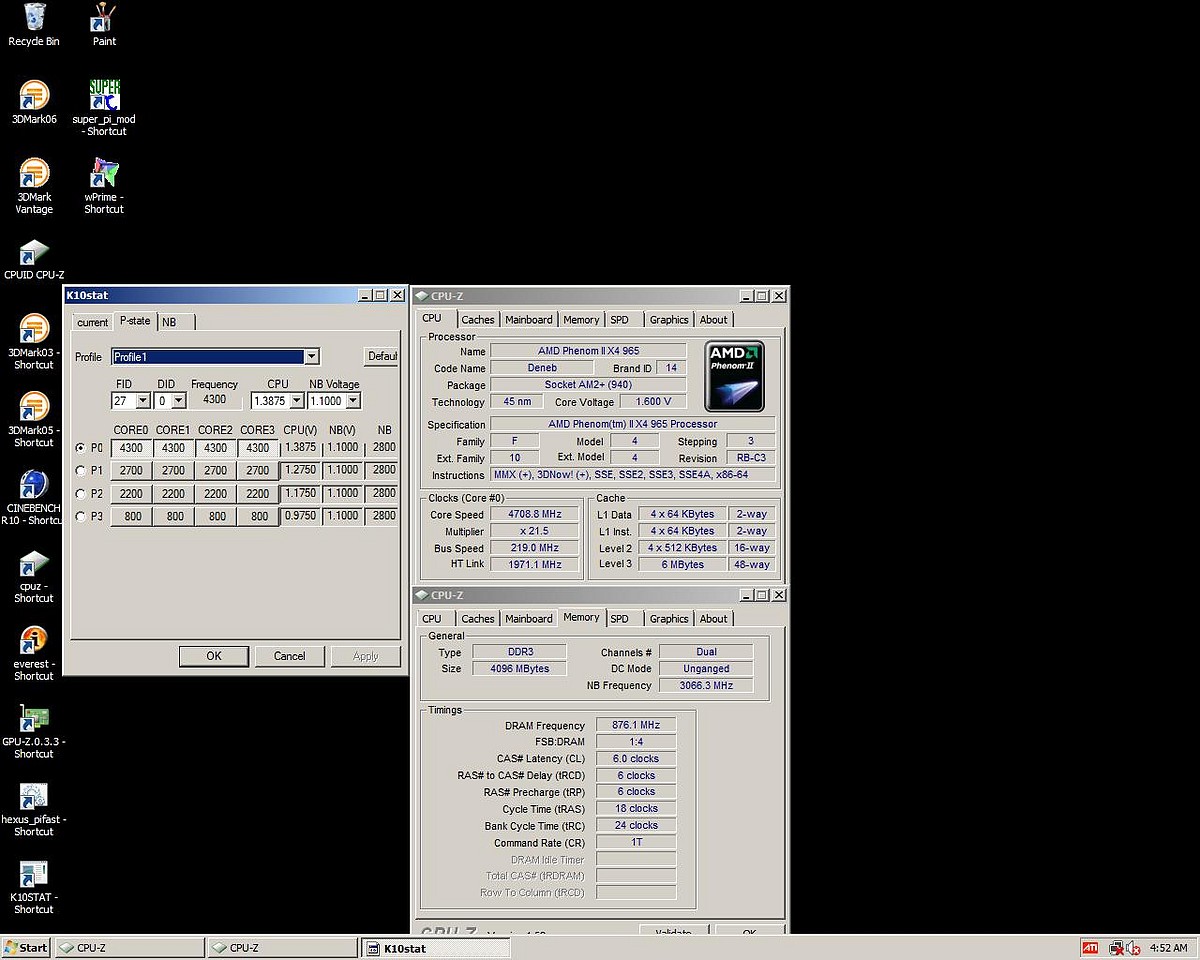

    I pushed a little harder but wprime 1024 would not pass.

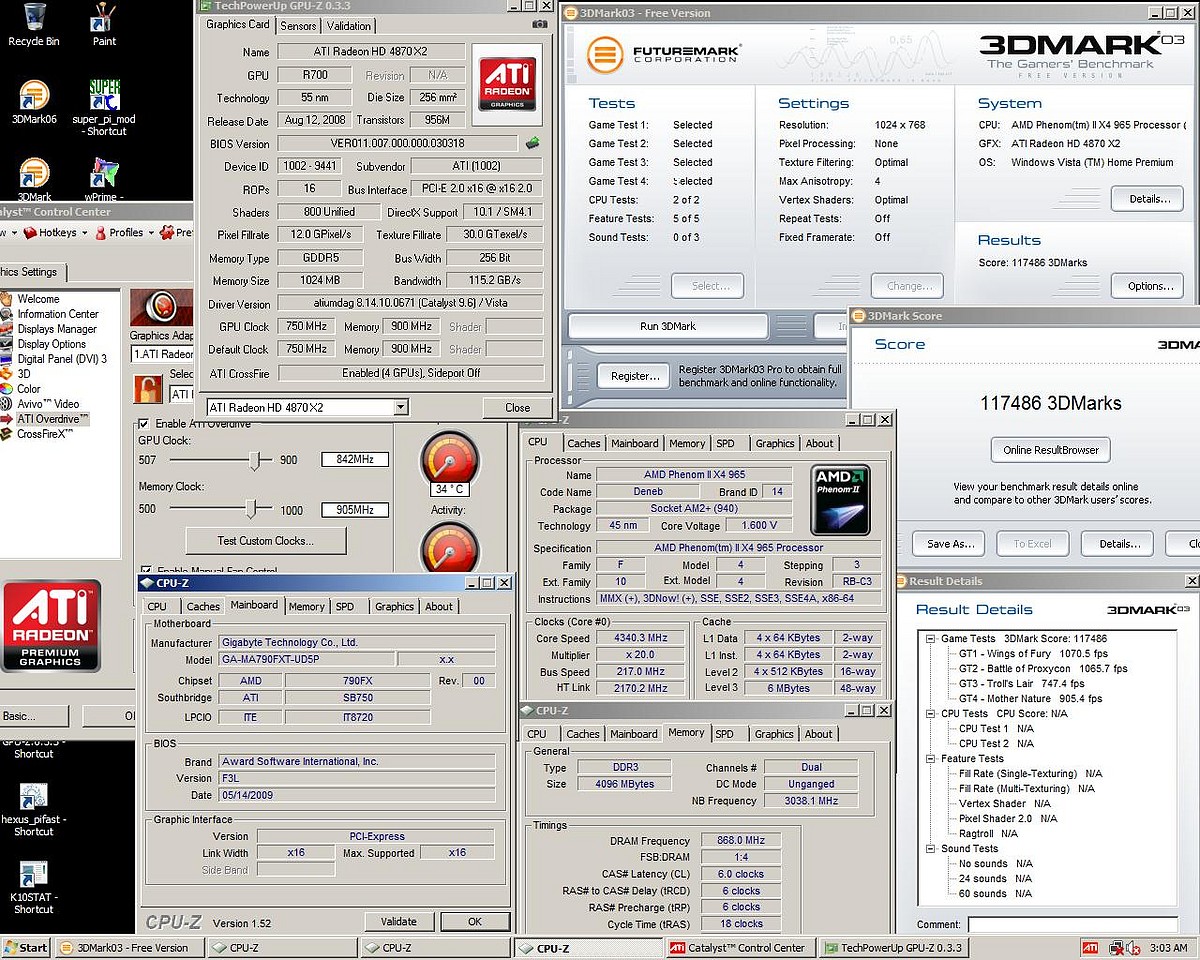

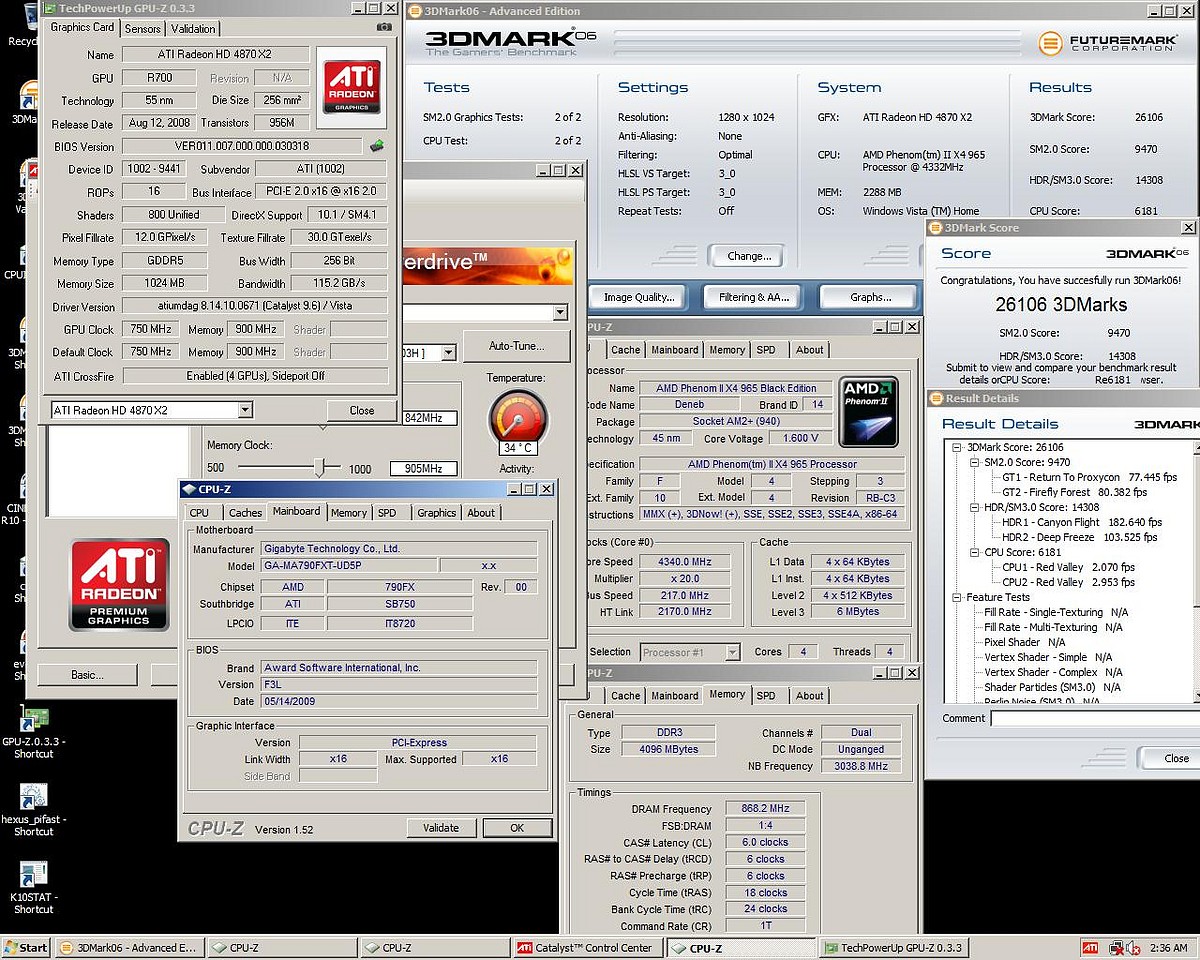

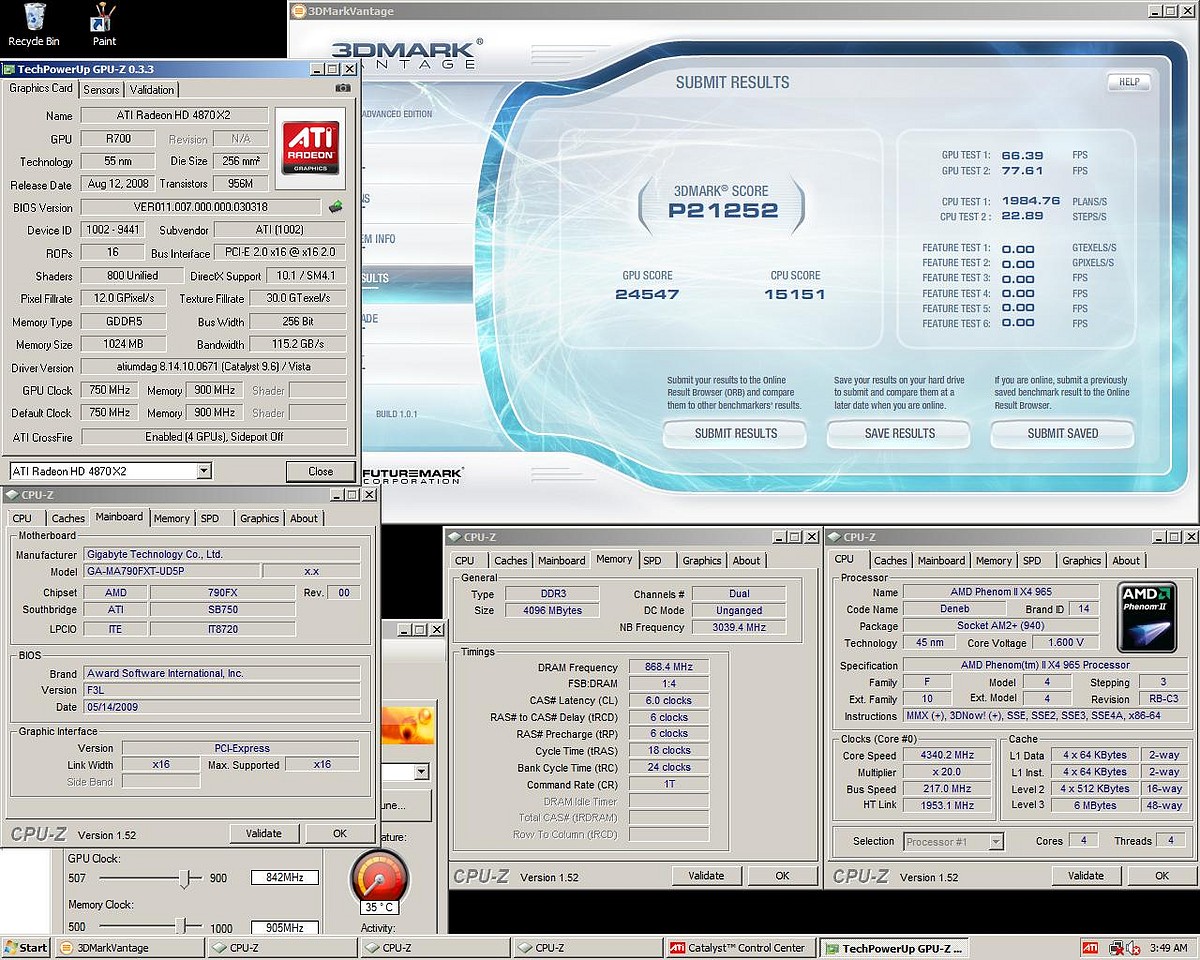

    3d this time with vantage.






















    That wraps up eXtreme water testing. Time for the sub zero results.

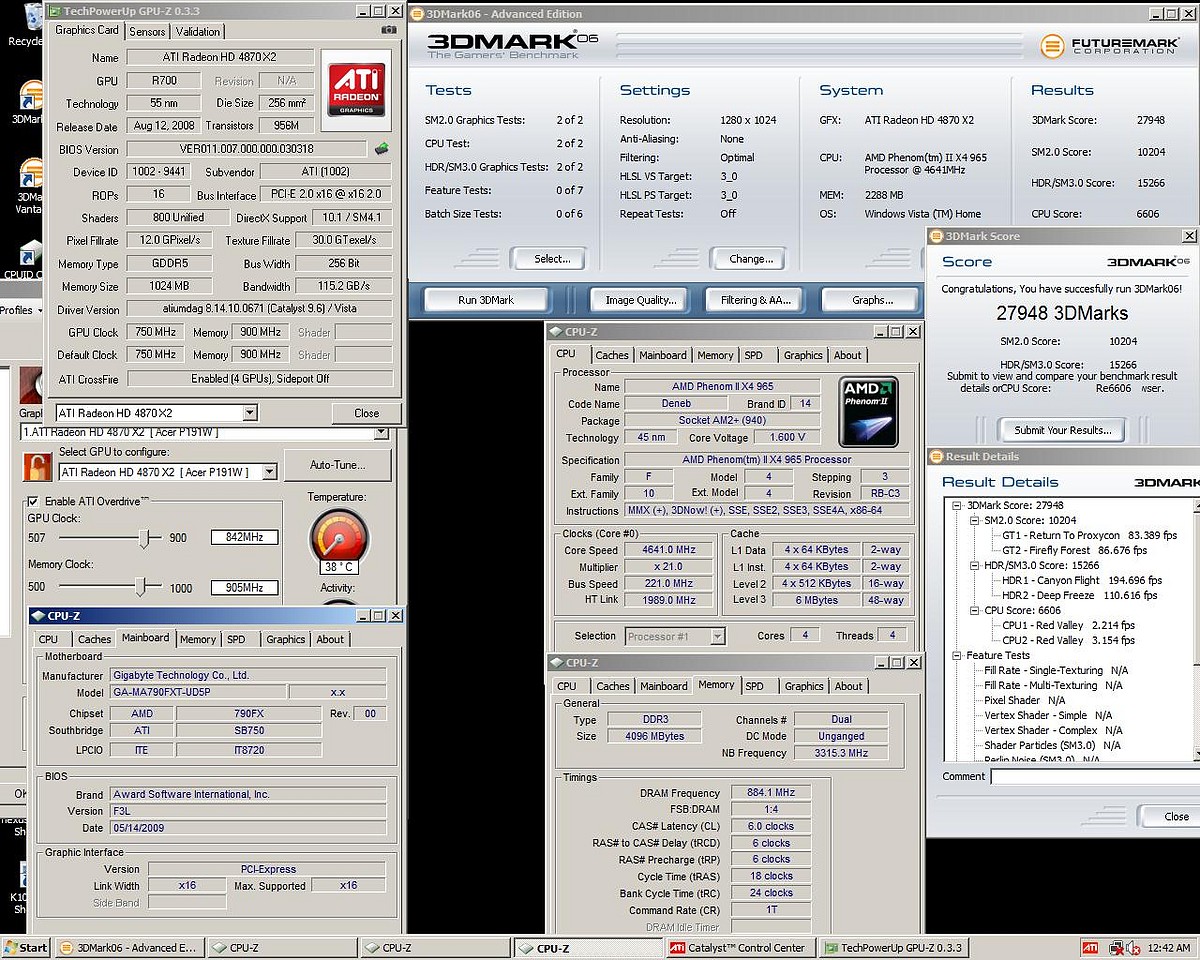

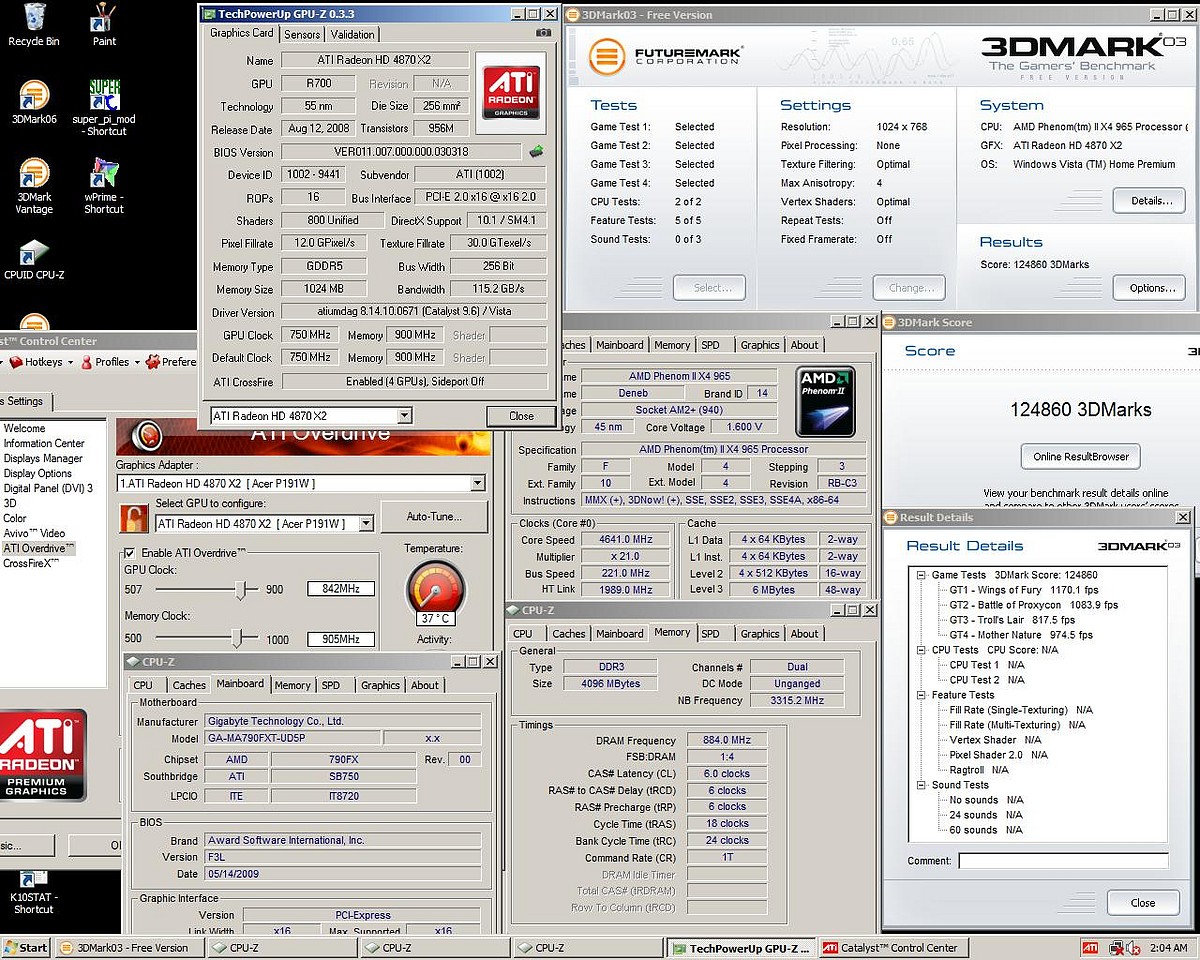

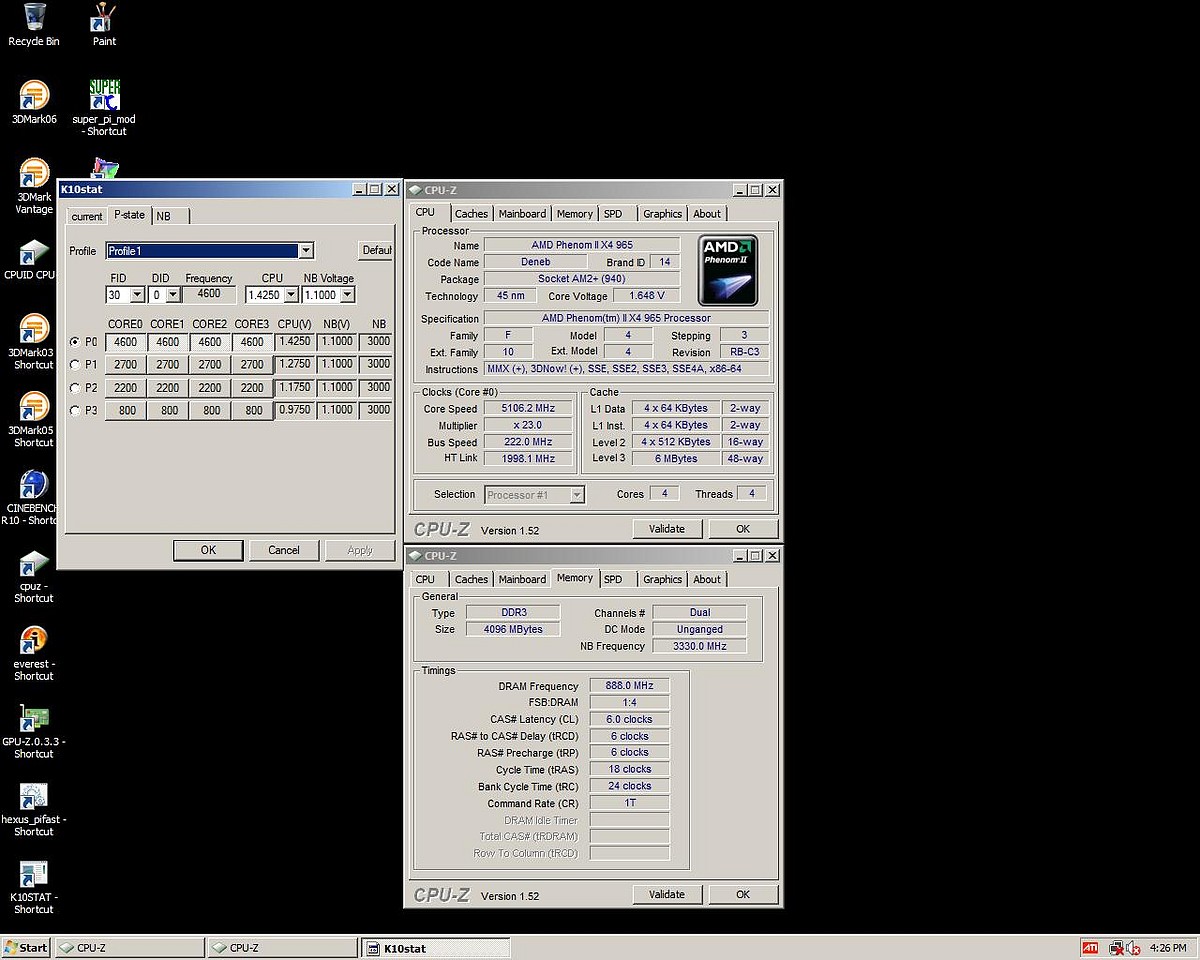

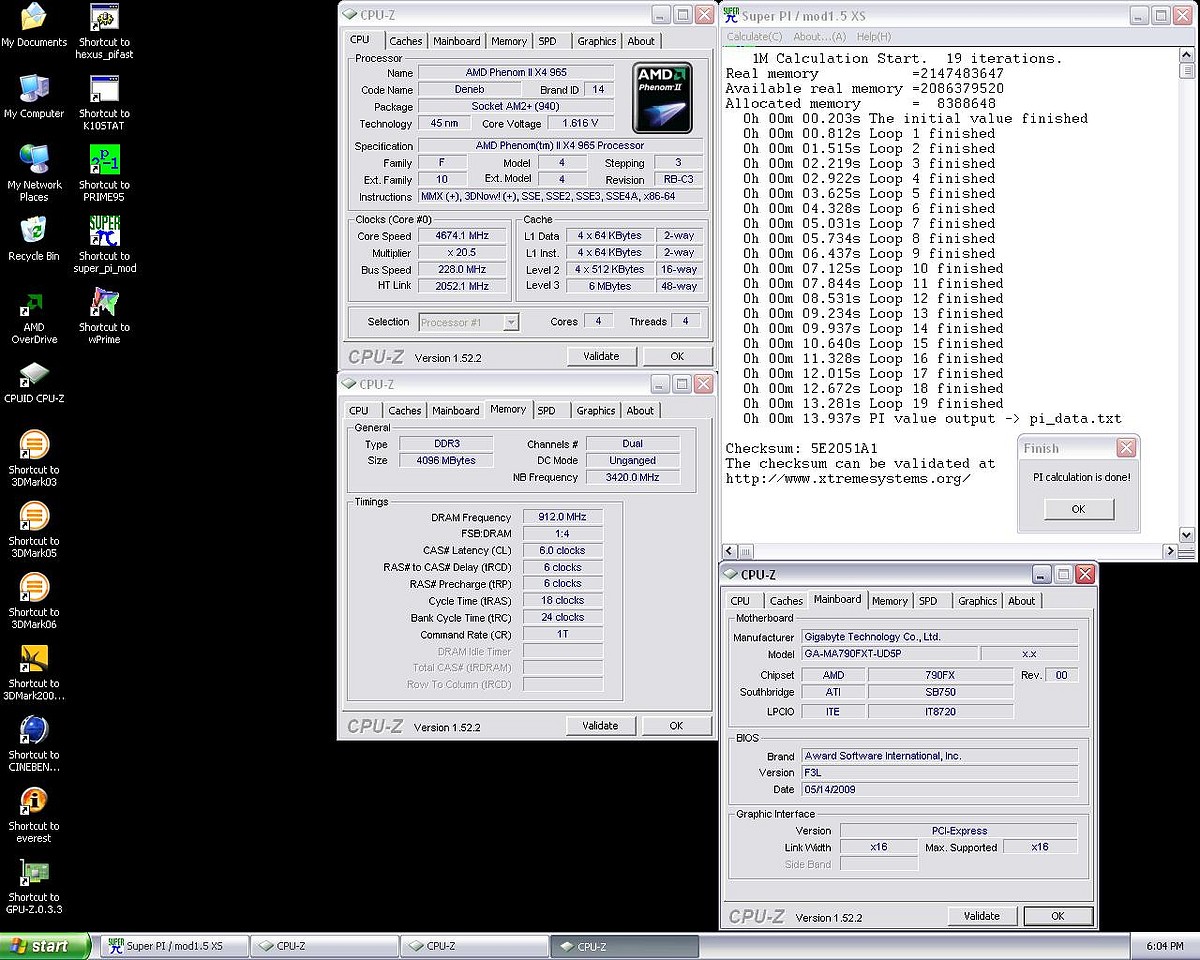

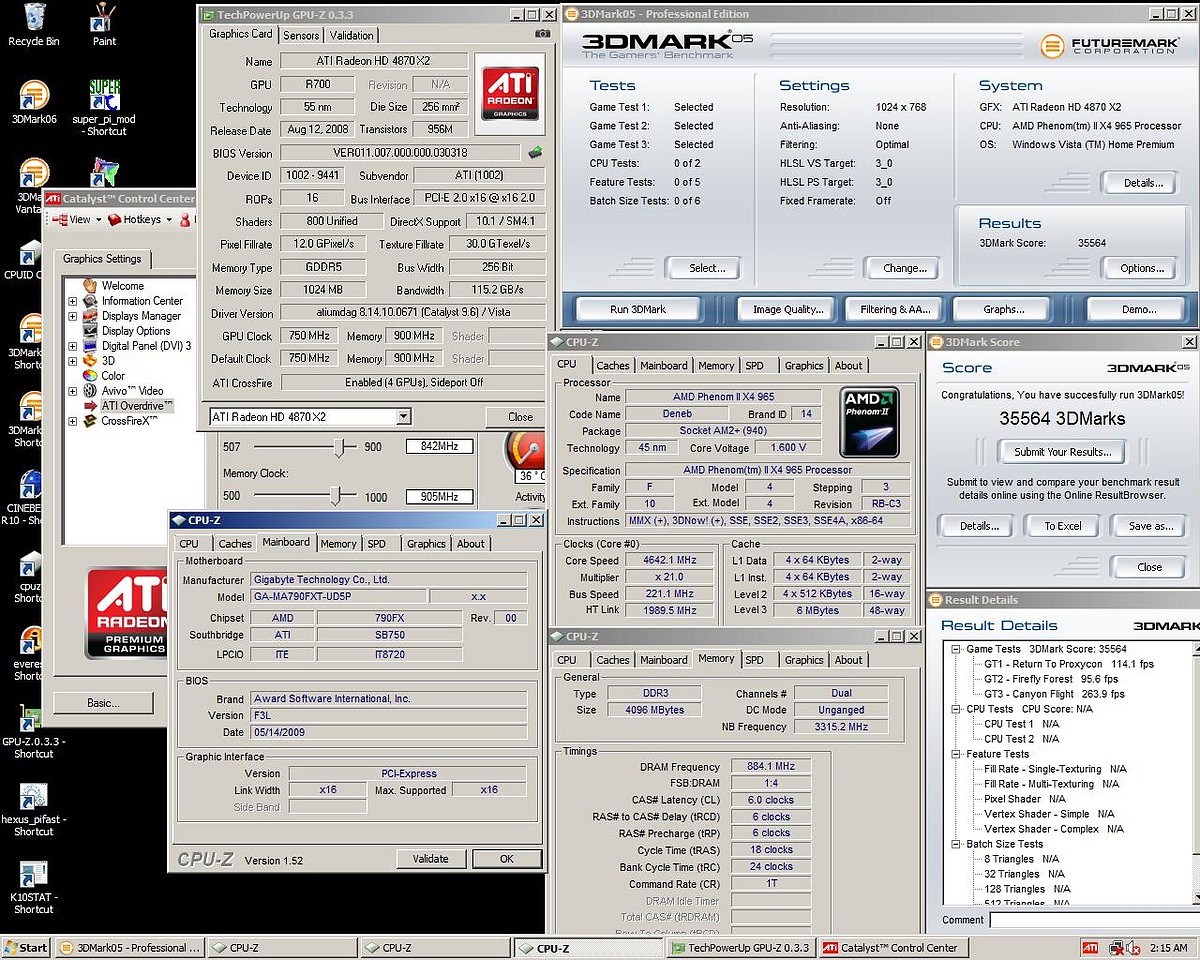

    Phase change bench configuration
    AMD phenom II 965BE C3 ( review sample )
    Gigabyte 790 FXT-UD5P
    Corsair dominator GT 1866 7-8-7
    PC power & cooling 860 + 1200W
    Unmodded Mach 1 single stage ( should have been retired many many years ago )
    2x 4870x2 for 3d, some 2d with a 2600 pro


    No wprime 1024 at this speed as this ancient mach 1 just can't deal with the load.

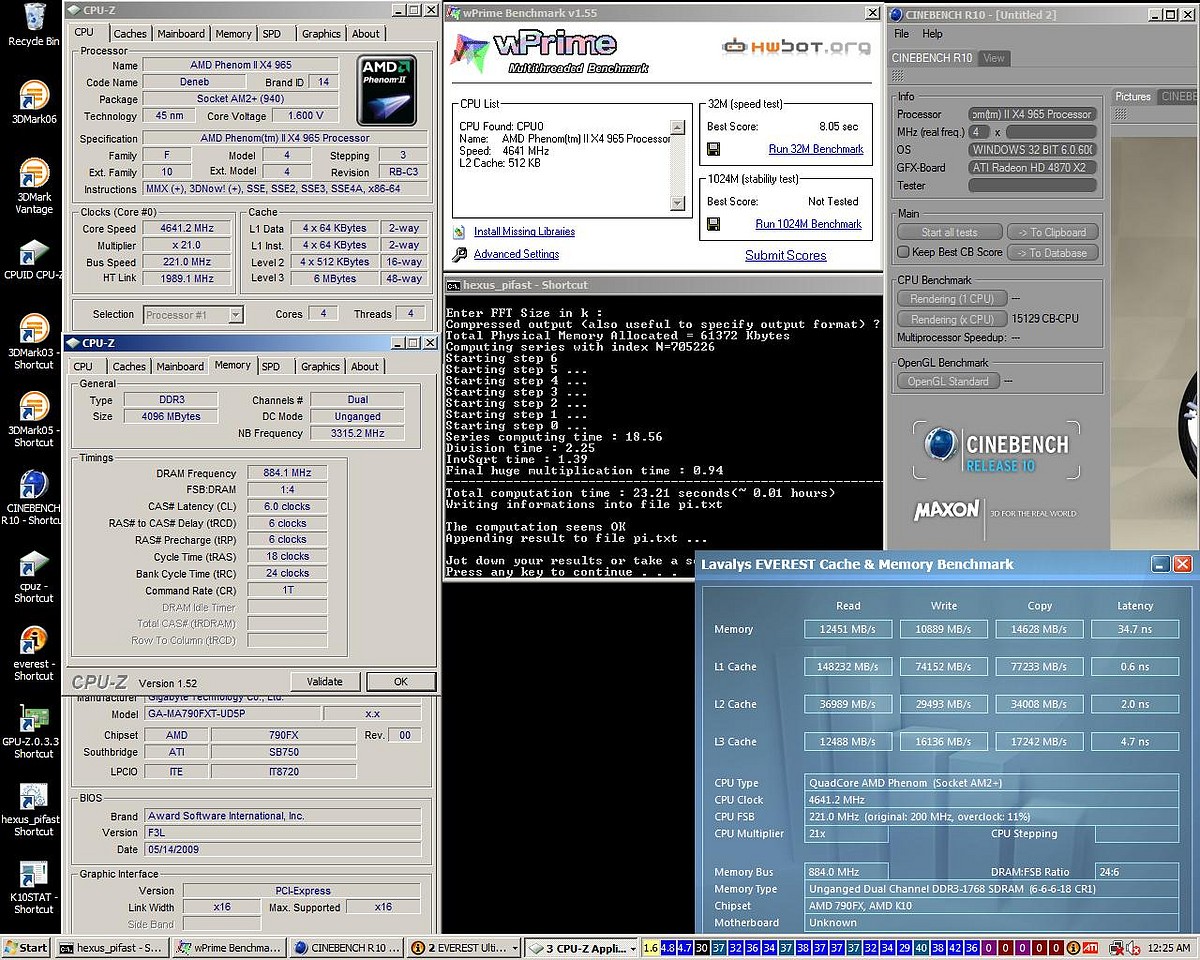

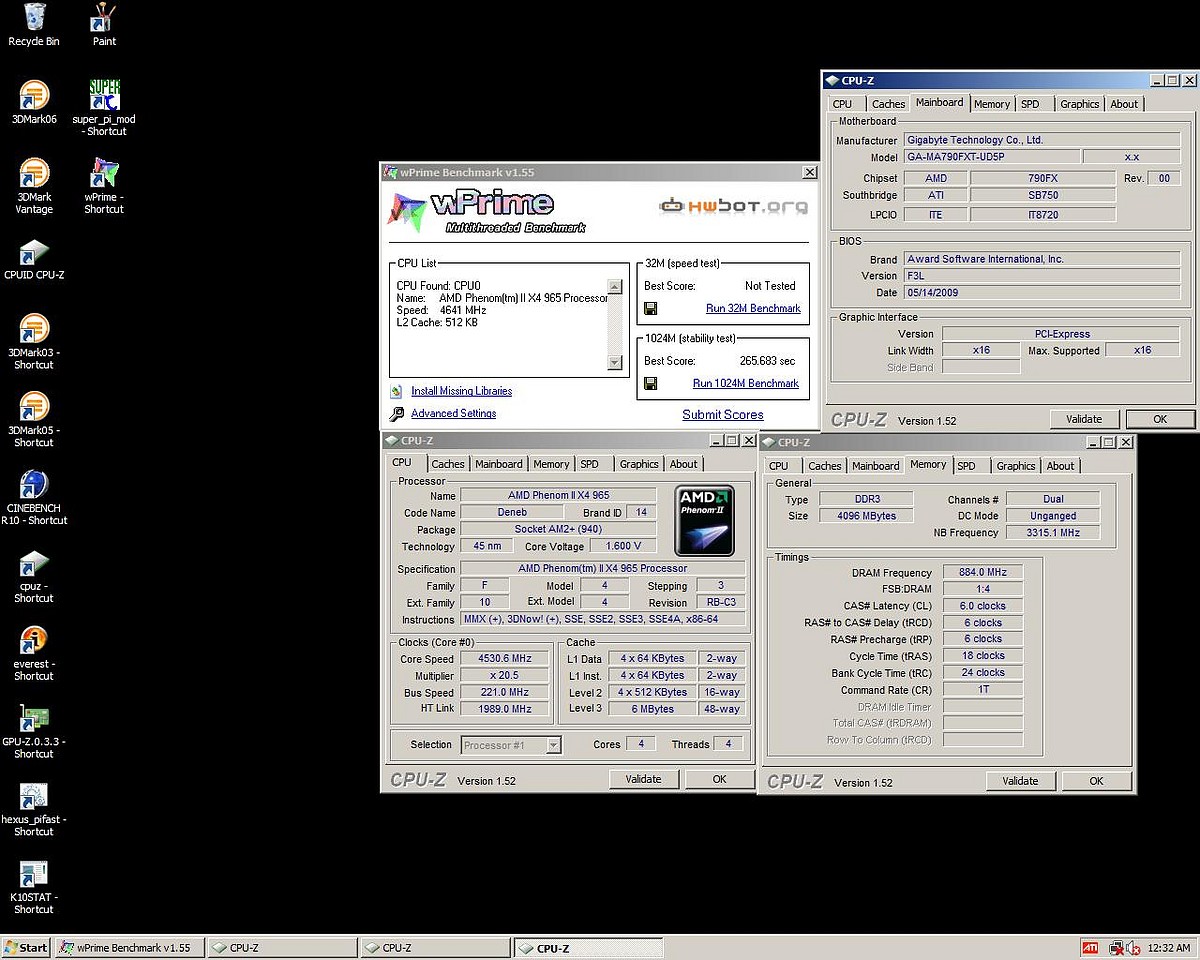

    For these next shots I ran wprime 1024 at the max my phase could handle.




















    Not sure what I did on this one, but I'm 100% sure I benched this higher than the above 32m shot.

    Most likely did not have the right core listed for the screenshot.







    That wraps up phasechange results.

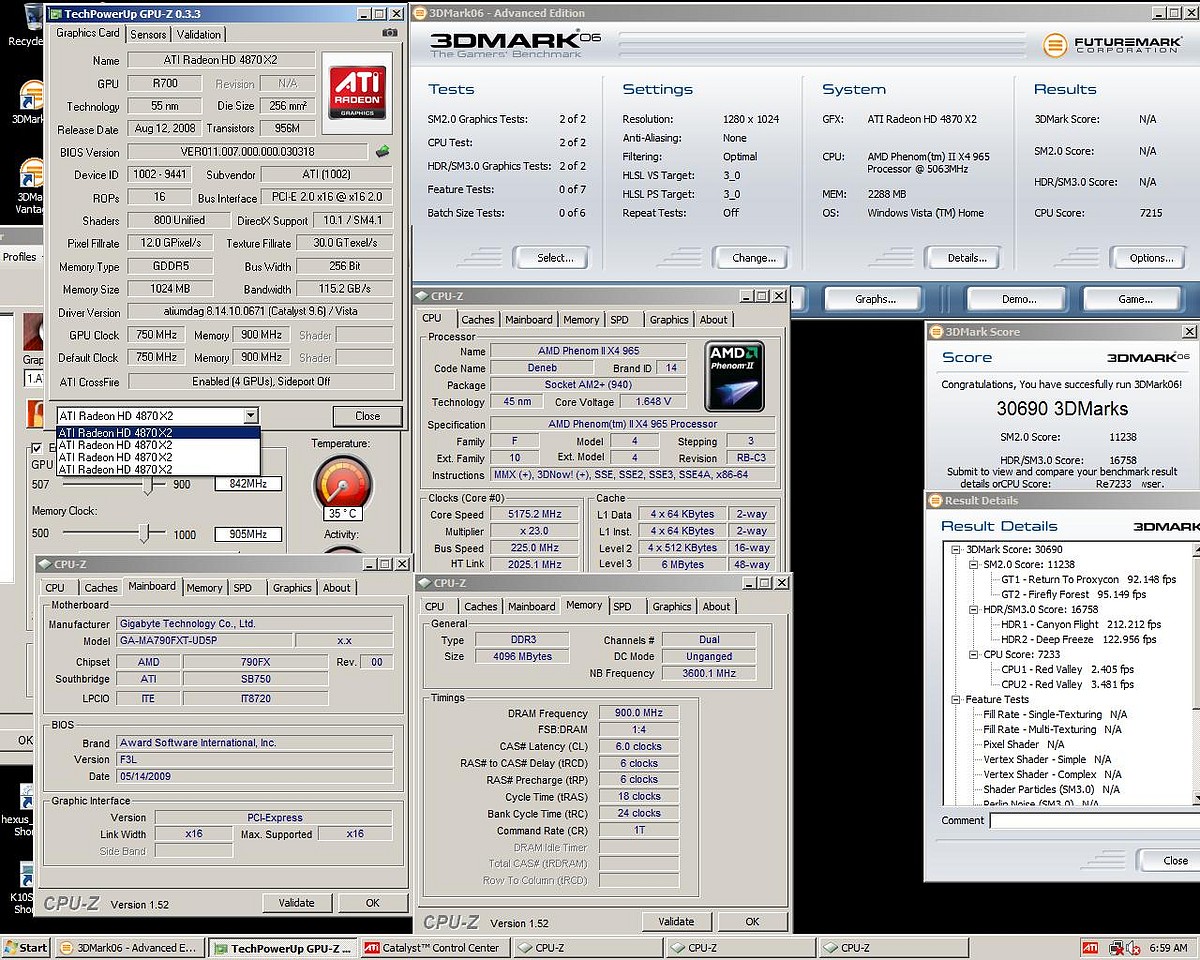

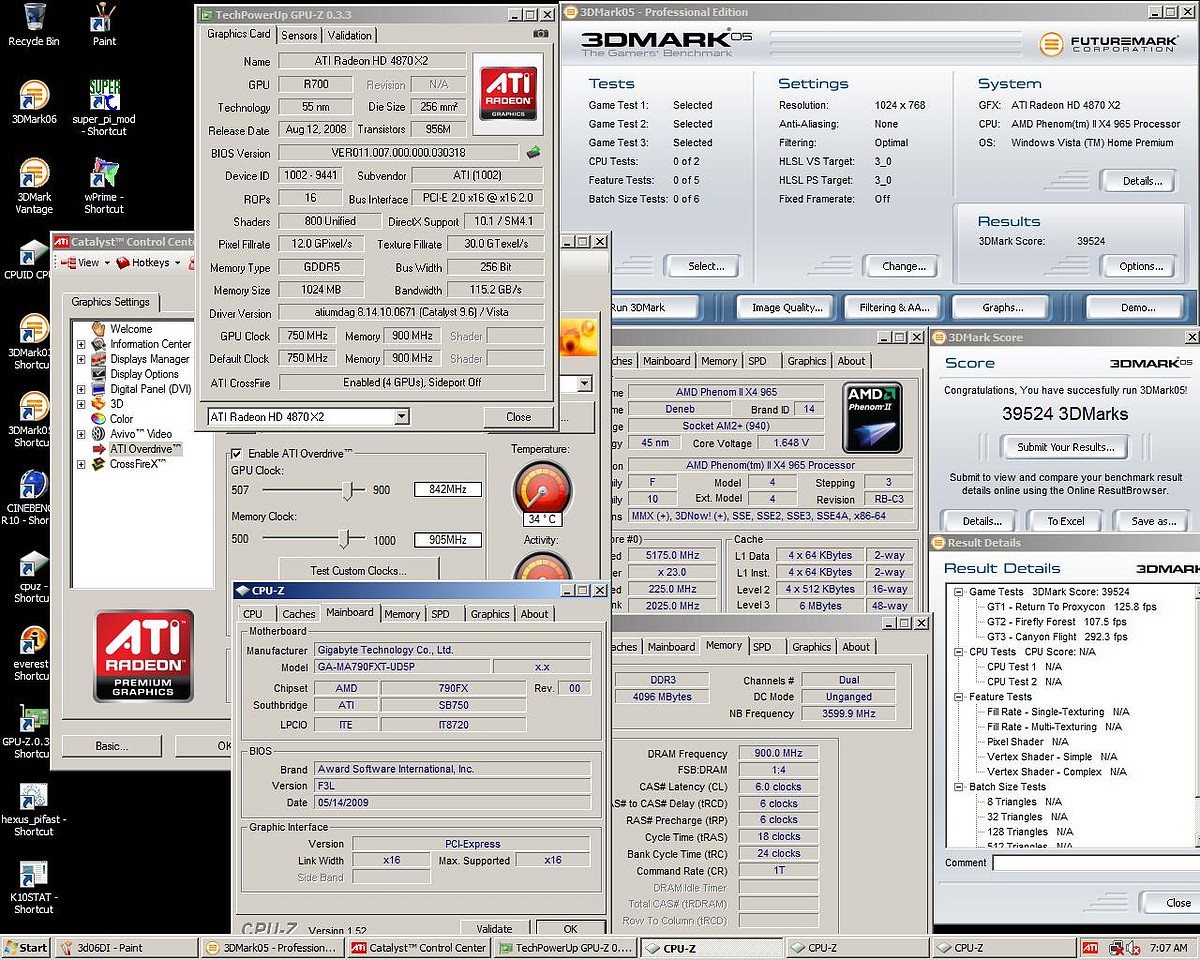

    DI bench configuration
    AMD phenom II 965BE C3 ( review sample )
    Gigabyte 790 FXT-UD5P
    Corsair dominator GT 1866 7-8-7
    PC power & cooling 860 + 1200W
    Custom LN2/DI pot courtesy of Aaron Schradin of www.ln2cooling.com
    2x 4870x2 for 3d, some 2d with a 2600 pro

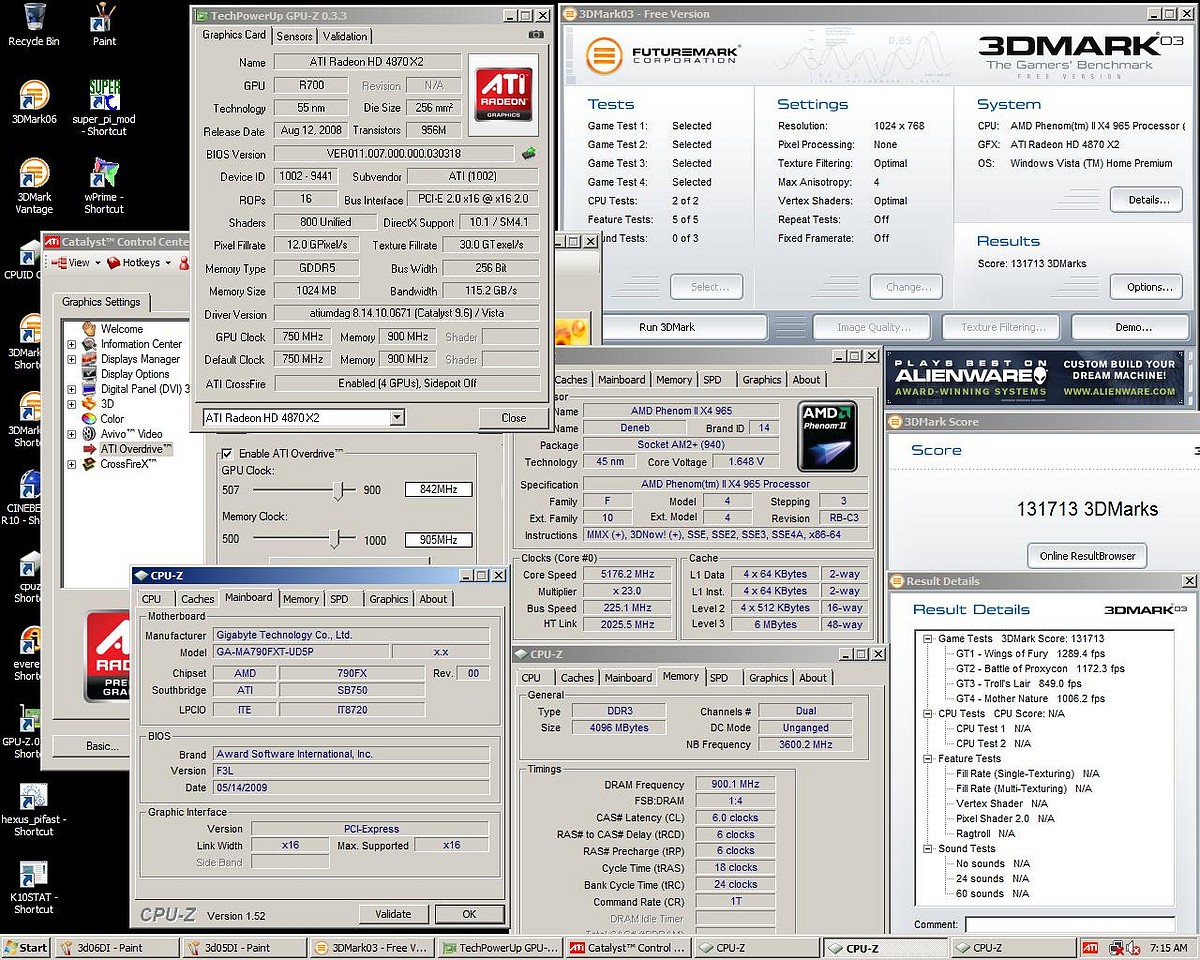

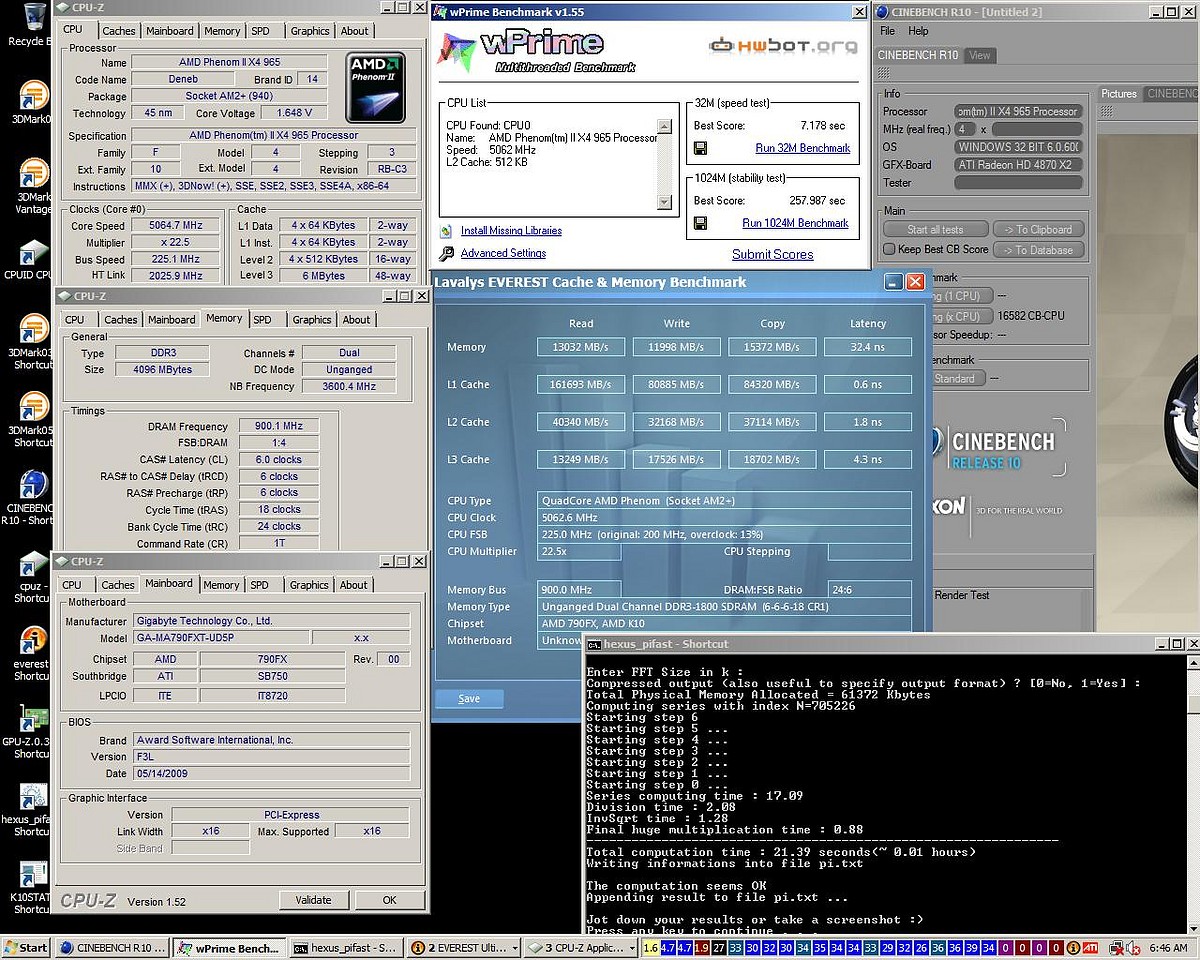

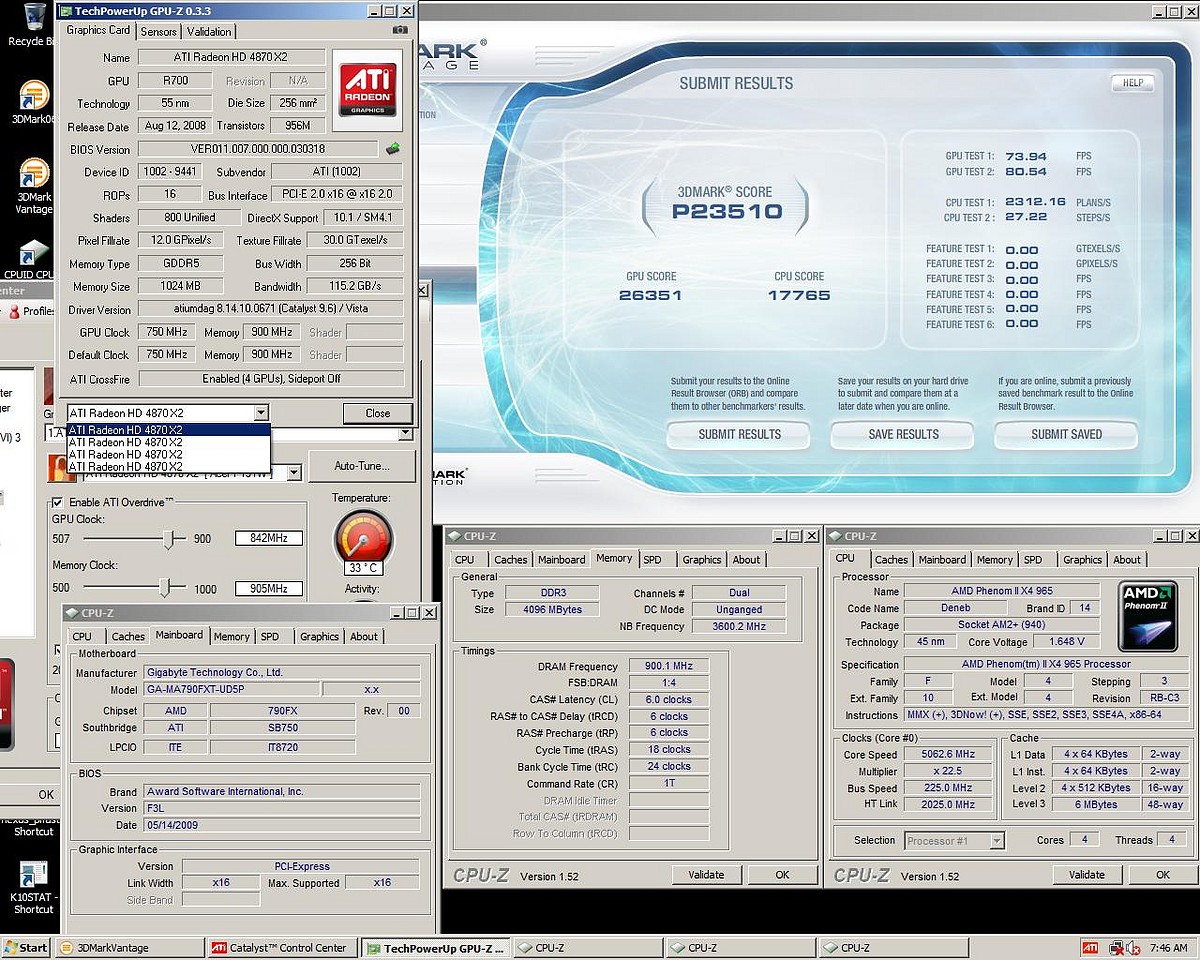

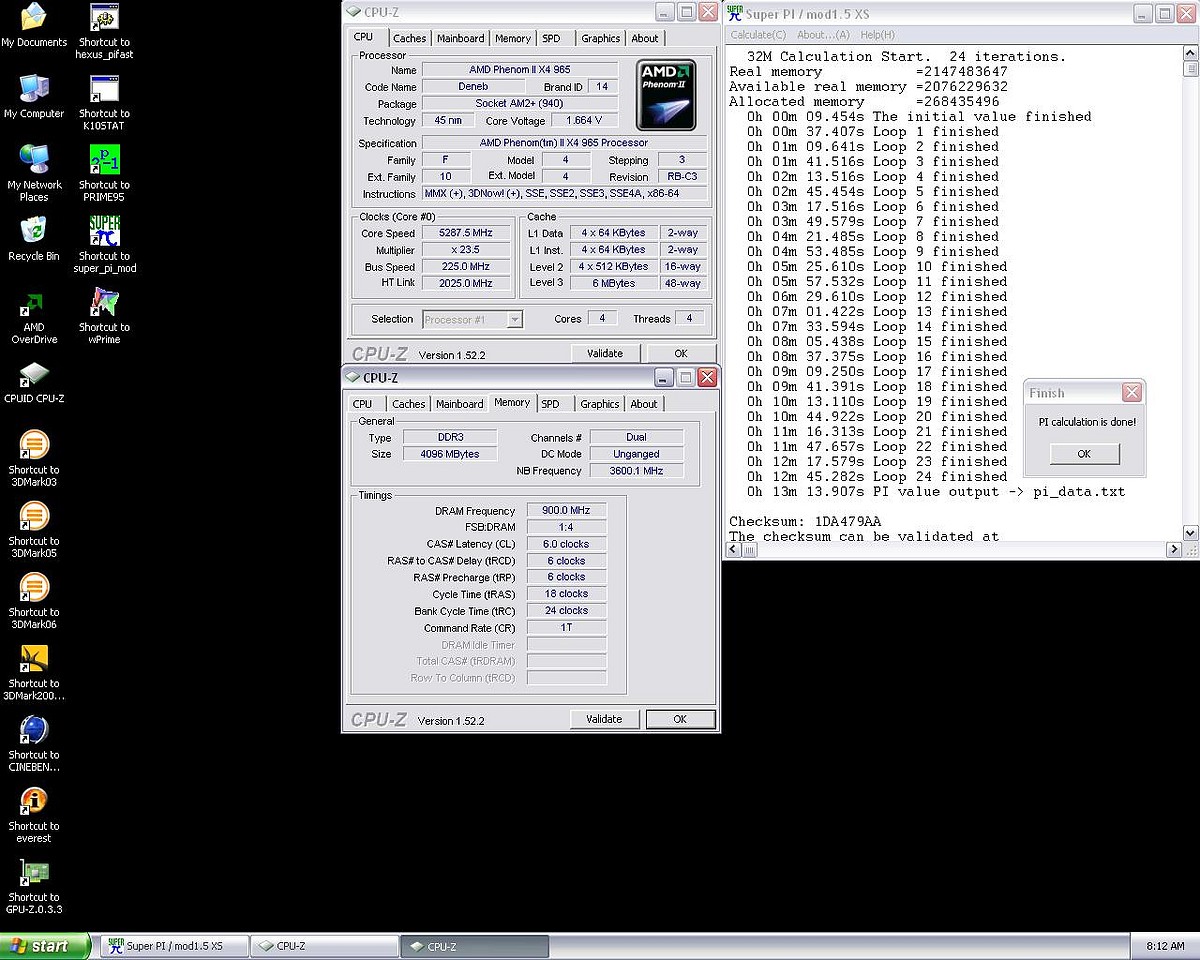

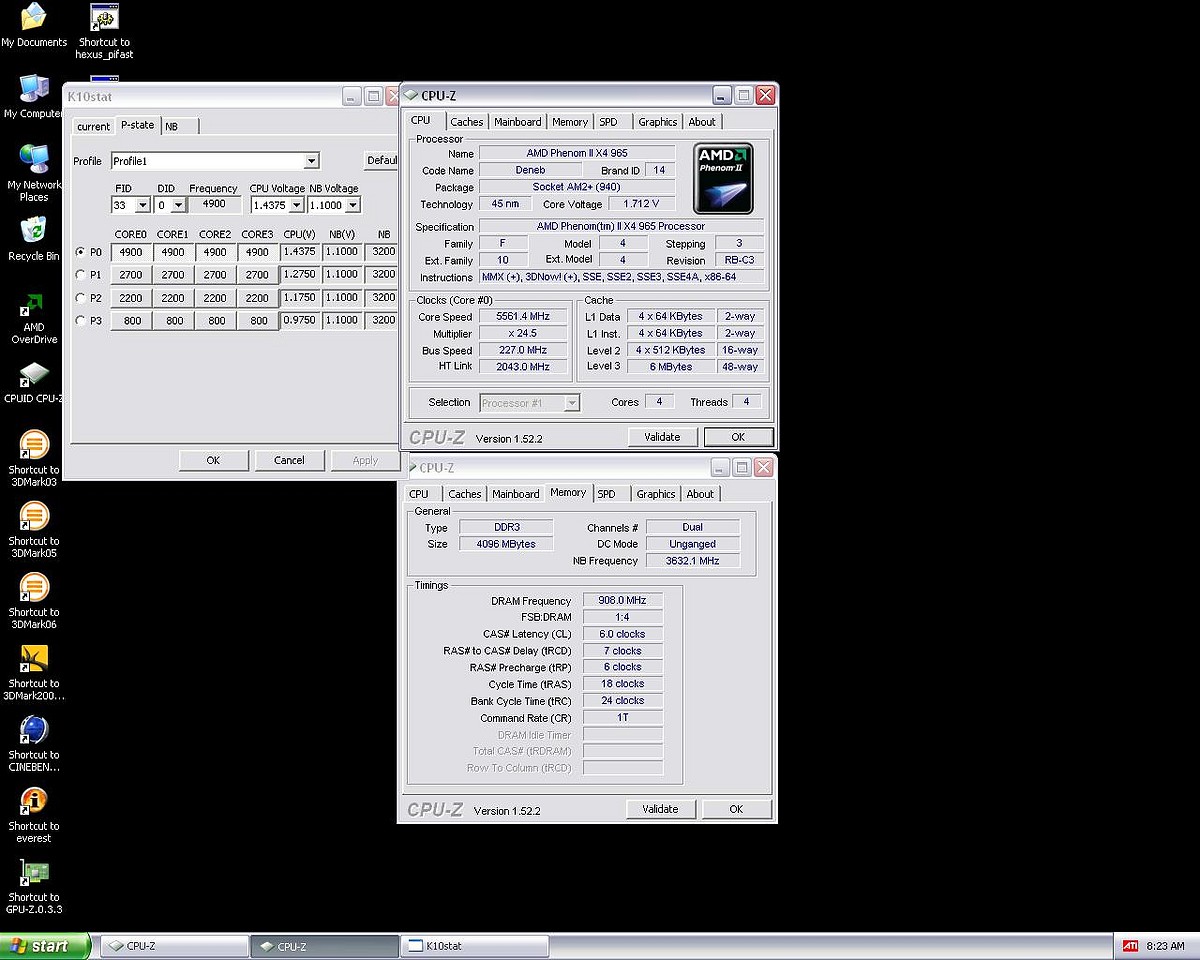

    Kicking off the benchmarks with dry ice, you can see my results below.


























    OK time for some LN2.

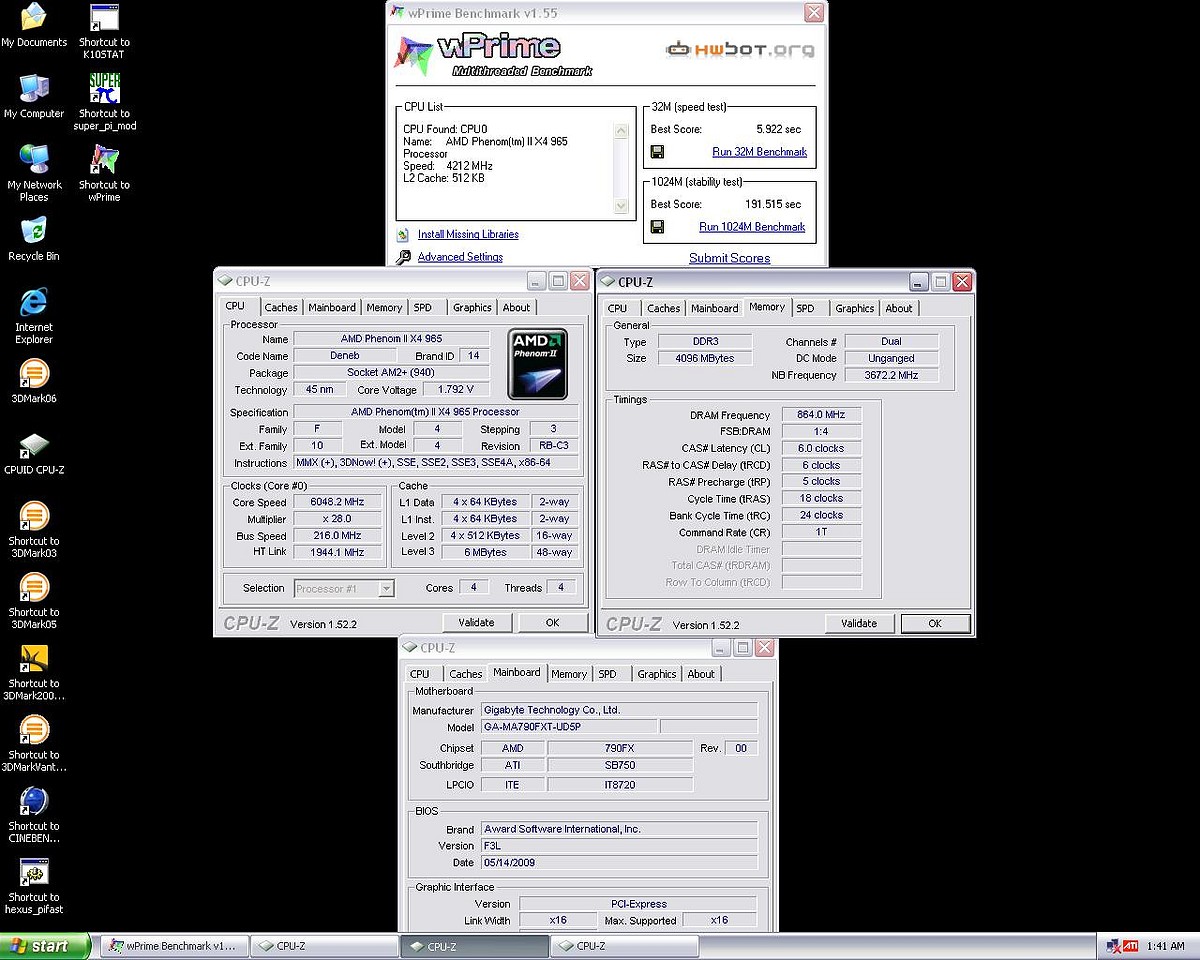

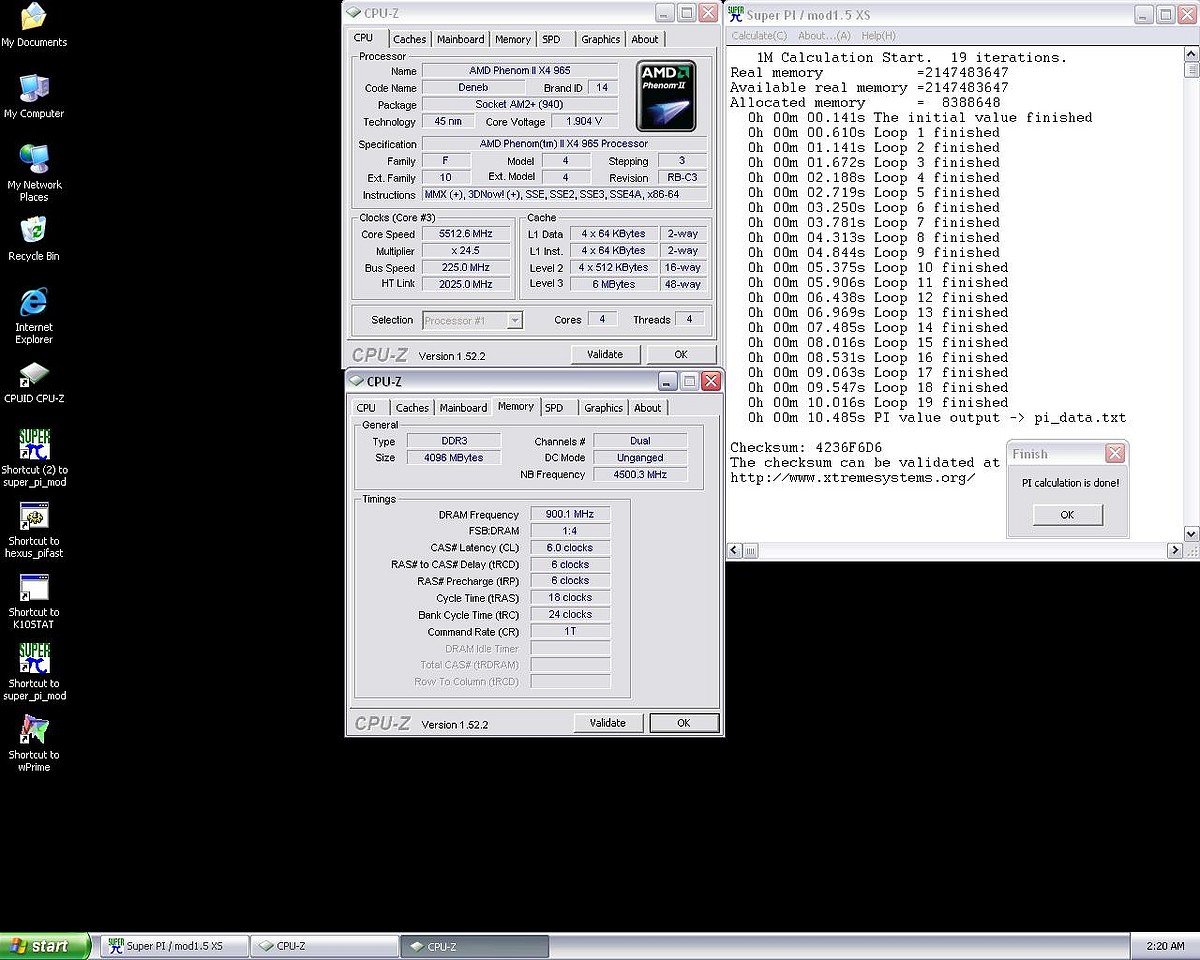

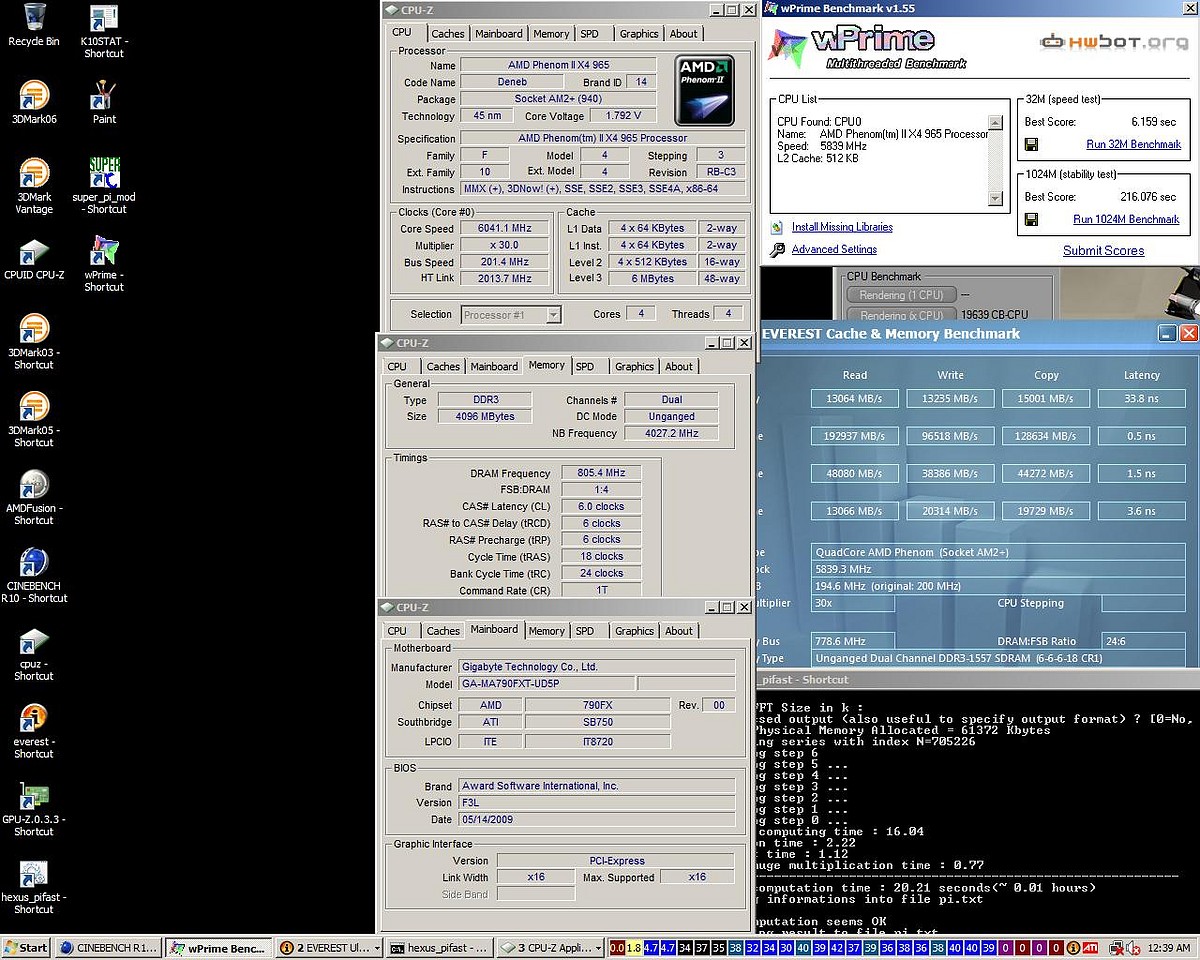

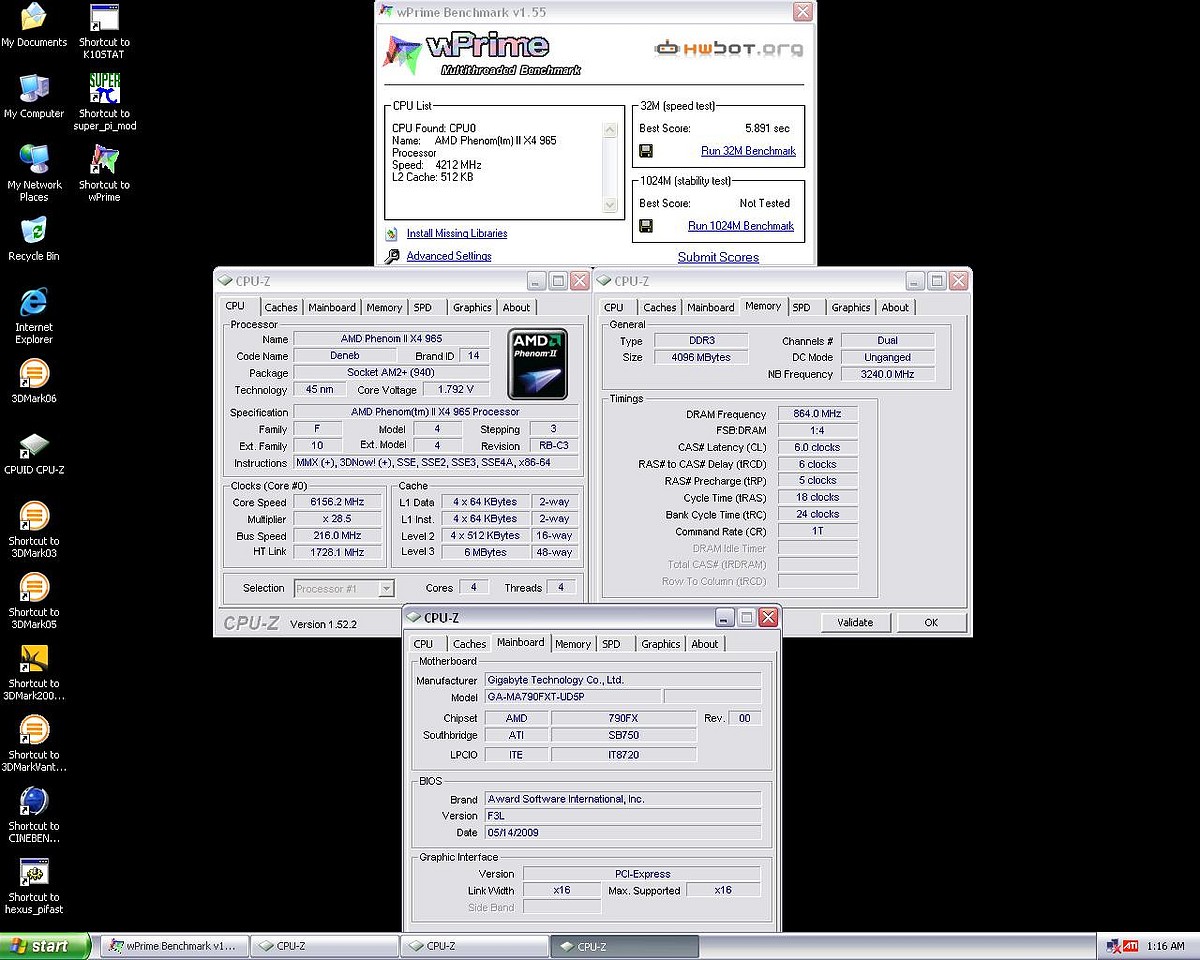

    LN2 bench configuration
    AMD phenom II 965BE C3 ( review sample )
    Gigabyte 790 FXT-UD5P
    Corsair dominator GT 1866 7-8-7
    PC power & cooling 860 + 1200W
    Custom LN2/DI pot courtesy of Aaron Schradin of www.ln2cooling.com
    2x 4870x2 for 3d, some 2d with a 2600 pro


    I honestly did not have much time and ran into some hardware issues shortly after Msimax and myself benched, so these are fairly random and tossed together.

    Namely I was working around previously crippled boards due to losing my last good cold board so please bear with me and the results.

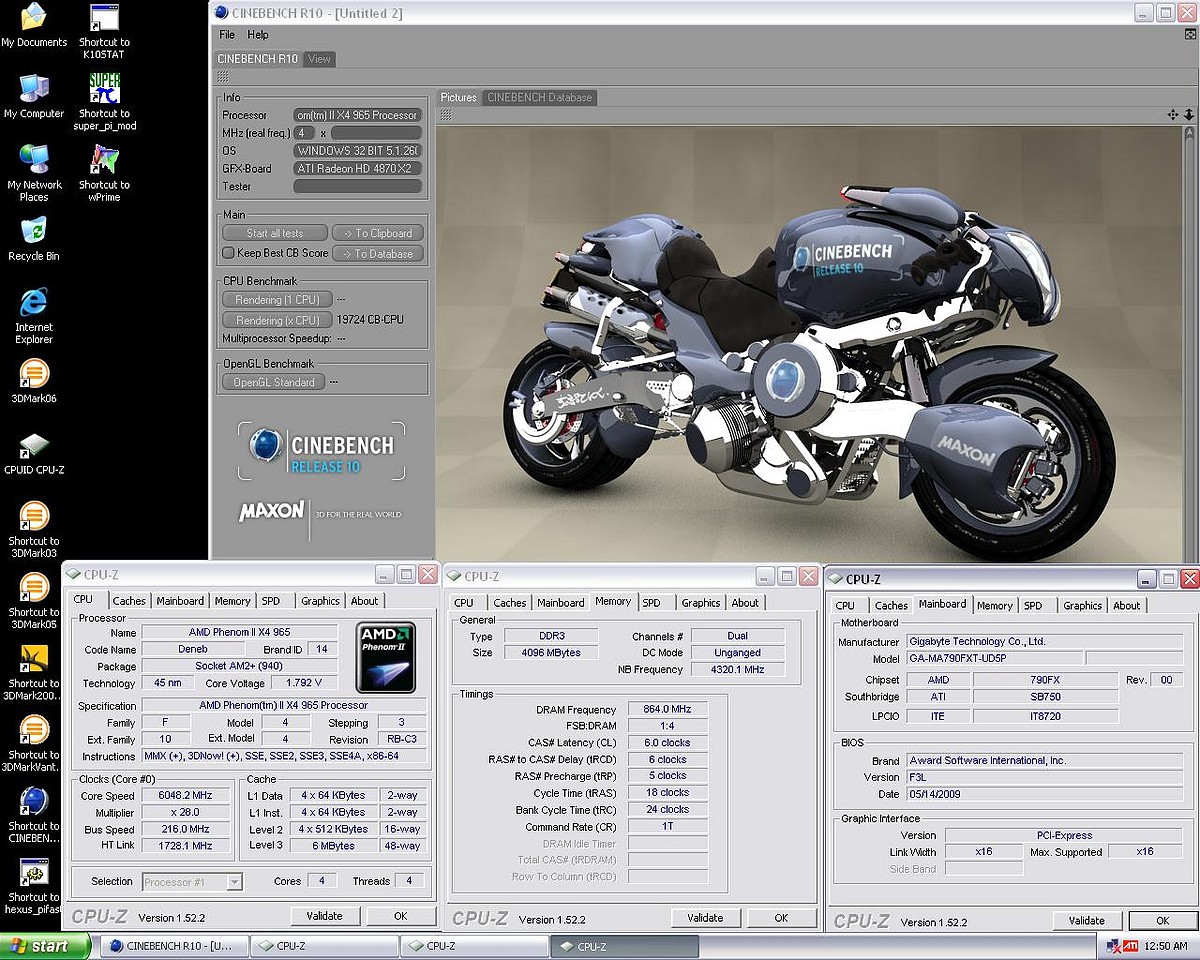

    For this I pushed cinebench a little further just for fun.











    Played with some NB clocking, result isn't effecient but I just wanted to see how high the NB would boot.








    Seems I messed up this shot too, pretty sure it was at 6.5g.





    Msimax and myself pulled a couple results on his trip up here.

    We were stuck with only 15L due to my Ln2 place dropping the ball, but we tried to make the most of it.

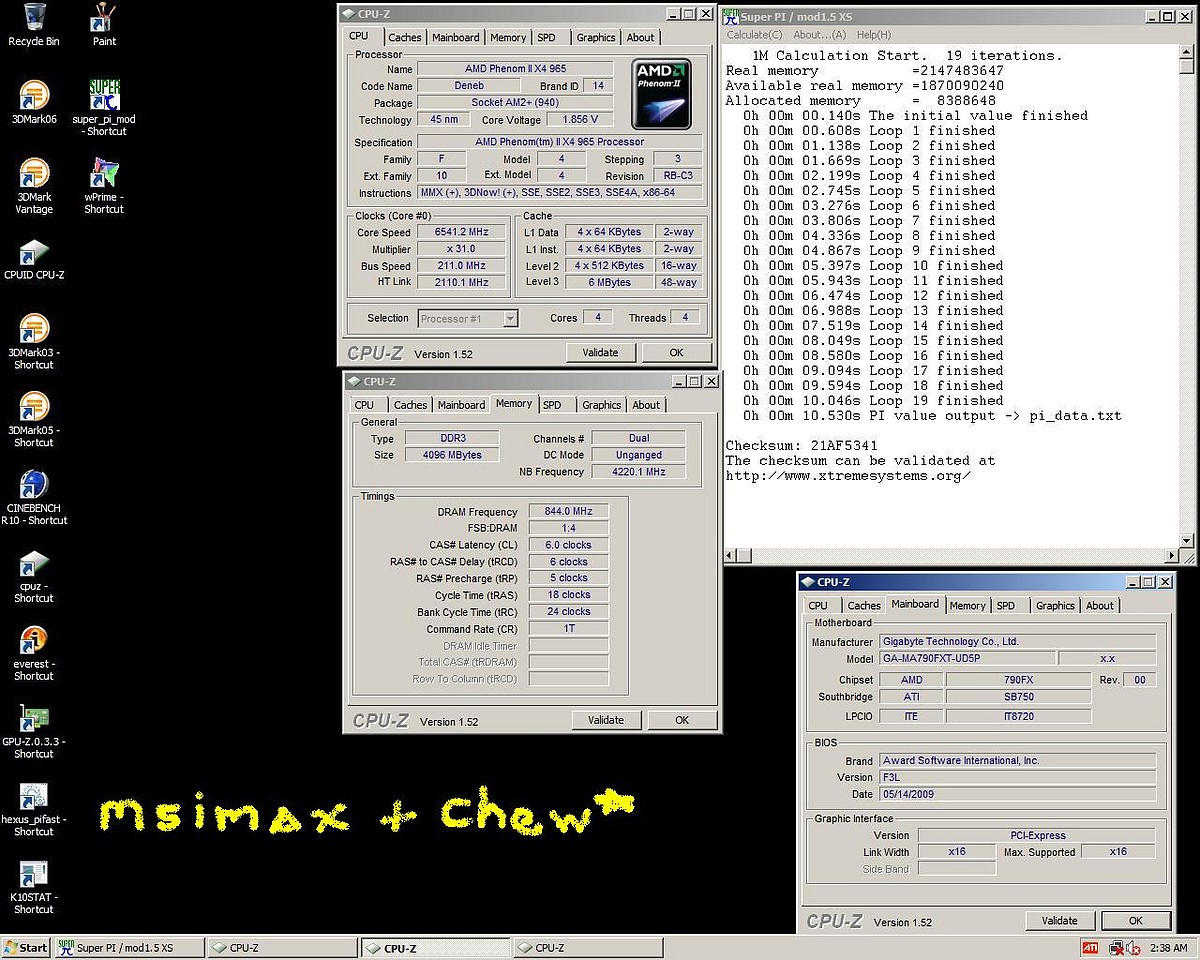

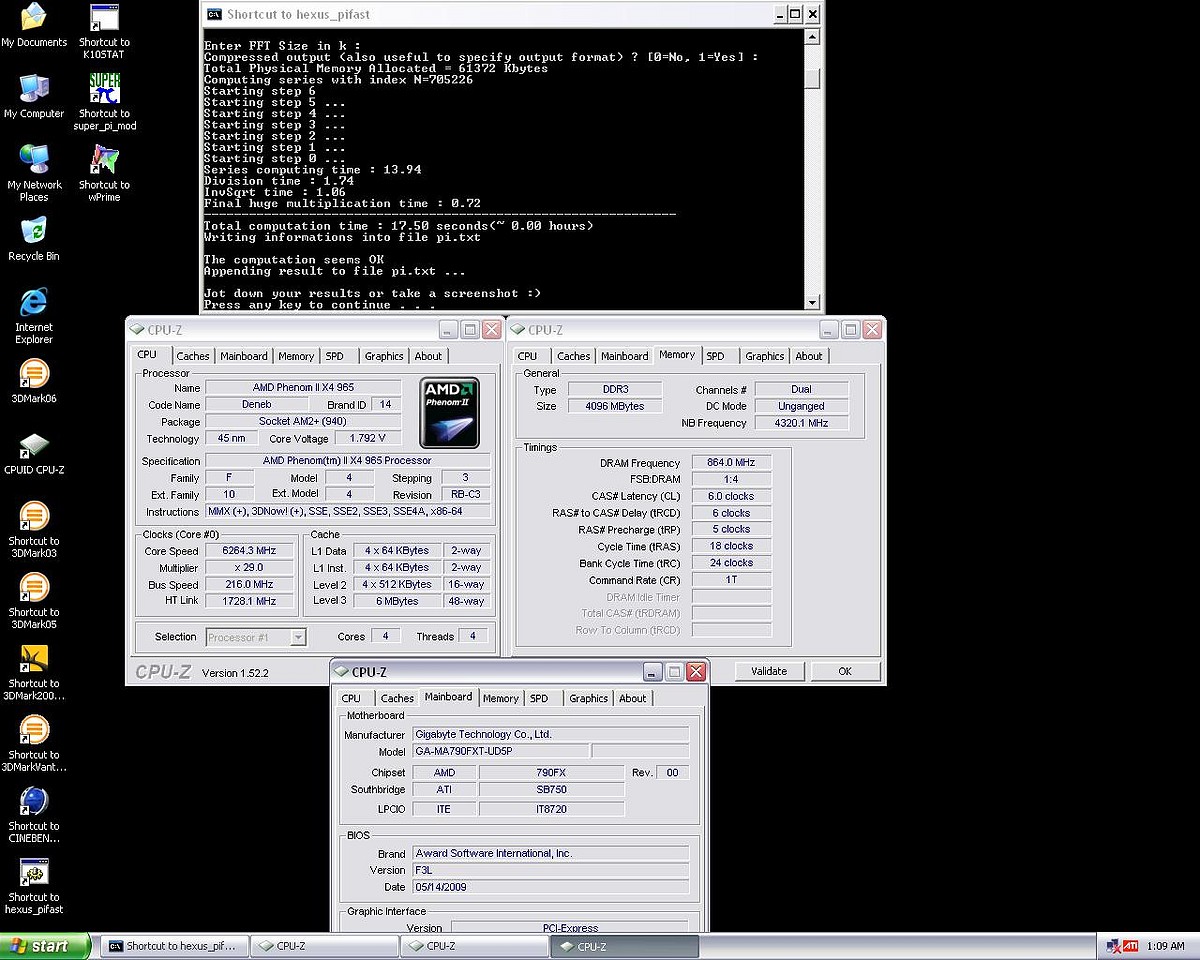

    After we got a decent 3d result we tackled some PI on vista.

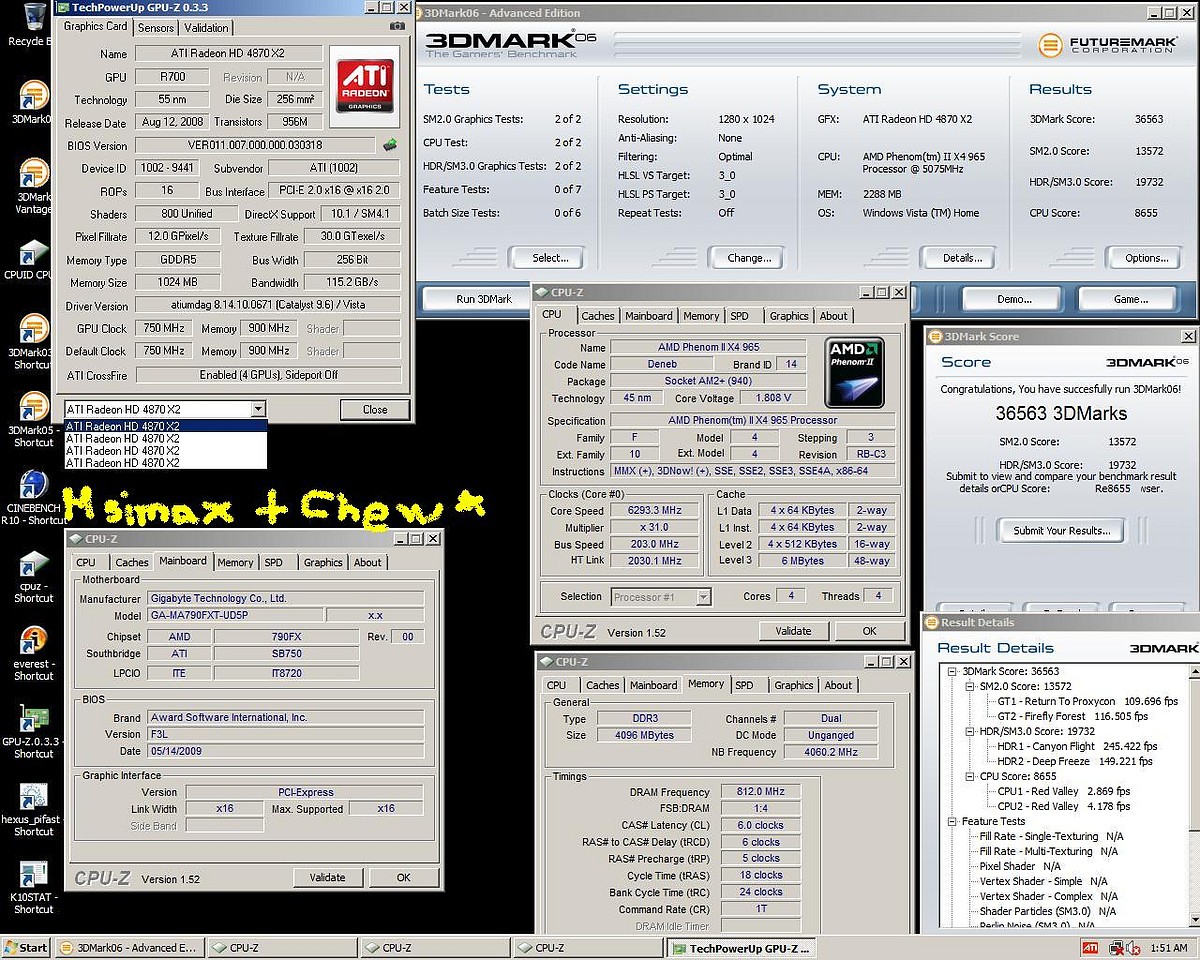

    Here's the best 3d06 result we were able to get on limited LN2 and limited time.




    Orb link
    http://service.futuremark.com/compare?3dm06=12379977

    To conclude, I'd say that it appears AMD has certainly made leaps and bounds since the release of the 955. I am definitely looking forward to what the future has in store for us from AMD.

    DIGG
    Last edited by Chew*; 11-05-2009 at 09:59 AM.
    There is no spoon

  2. #2
    TR Blogger
    Join Date
    Apr 2009
    Posts
    4

  3. #3
    TR Staff Neuromancer's Avatar
    Join Date
    Apr 2009
    Location
    South Jersey
    Posts
    3,092
    Thanked
    23 times
    Looking good
    Beer drinking is like finger painting. When you are young, you do not care what you stick your fingers into as long as you got to do it. When you are older, eww Heineken? I really want a beer that comes from the factory skunked?


    TRN Modder's Club

  4. #4
    I'm scruffy. EnJoY's Avatar
    Join Date
    Jul 2008
    Location
    Massachusetts, USA
    Posts
    3,966
    Thanked
    3 times
    I'm just loving the improvements on ambient cooling. Great work AMD!
    Follow TechREACTION On Twitter.

    "I do not fear a man who has practiced 10,000 kicks once. I fear a man who
    has practiced one kick 10,000 times." - Bruce Lee

  5. #5
    TR Blogger drizzt5's Avatar
    Join Date
    Apr 2009
    Location
    New Joisy
    Posts
    842
    Looks great.

  6. #6
    TR Blogger FlanK3r's Avatar
    Join Date
    Apr 2009
    Location
    Czech republic
    Posts
    31
    Very nice work Chew. Looks +100 MHz better than C2 in AIR, more with DICE think. And finnaly nice runs in Cinebench and wprime with LN2
    AMD Phenom II X4 955 BE@3915MHz+2678 MHz NB 24/7 , Gigabyte MA790x-ud4, CM Hyper 212, 3GB Kingston Hyper-X 1066@1090+ MHz cl 5-5-5-15-24-2T, ATI HD3870 GDDR4 512MB, 2x320GB HDD WD, 20" Samsung bw2053, razer deathader AMD 965 BE C3 + ASUS HD5770 coming soon. max clock 4386 MHz 1.55V http://valid.canardpc.com/show_oc.php?id=799642

  7. #7
    TR Blogger wez's Avatar
    Join Date
    May 2009
    Location
    Åland, Finland
    Posts
    687
    Good stuff Some nice improvements there, and will probably only get better

    Any words said on when they hit retail?
    Asus Crosshair IV Extreme
    AMD FX-8120
    AMD HD 6950 2gb x 2
    4x4gb HyperX T1
    SB X-Fi Titanium

    OCZ Vertex 2

    3 x Alphacool triple, 2 x Alphacool ATXP 6970/50, EK D5 dual top, EK Supreme HF



  8. #8
    KTE
    KTE is offline
    Whiz Kid
    Join Date
    Apr 2009
    Location
    US/UK
    Posts
    321
    Thanks! Greatly done review for those involved. Best presented and detailed OC review I've seen in a long time. Best of all is the methodology, well done

    I've seen 4x 0933 other review samples by now. All were 1.375 CPU-VID and 1.10 NB-VID, except one, planet3dnow: 1.400 CPU-VID.

    All of them were able to get the CPU 4.0GHz-4.1GHz stable on typical air cooling, 1.50-1.53v. NB especially clocked quite a bit higher and RAM a little higher too. So it does seem C3 offers better OC for the daily runner and the benchmarker.

    I expect retail samples to get better by the day, so 4.0-4.3GHz stable should become common on air/water with guys with the relevant knowledge.
    There is a widespread misapprehension that human beings behave logically, but many of society's ills illustrate that most of us are driven instead by our primitive instincts and emotions - Professor Philip Steer

  9. #9
    KTE
    KTE is offline
    Whiz Kid
    Join Date
    Apr 2009
    Location
    US/UK
    Posts
    321
    Quote Originally Posted by wez View Post
    Any words said on when they hit retail?
    I can already get HDZ965FBGMBOX retail around EU.
    There is a widespread misapprehension that human beings behave logically, but many of society's ills illustrate that most of us are driven instead by our primitive instincts and emotions - Professor Philip Steer

  10. #10
    TR Blogger clon22's Avatar
    Join Date
    Sep 2009
    Posts
    5
    Nice work guys!
    Great results too!
    It always nice to see 4G air stable on amd.
    Insane rams u have there btw.

  11. #11
    TR Blogger
    Join Date
    Sep 2009
    Posts
    310
    Thanked
    1 times
    Hey great review...was just checking it out and the first picture shows core v at 1.5 odd in cpuz and 1.375 in the AMD overdrive..so which one is it?

  12. #12
    Terminator Administrator Archer's Avatar
    Join Date
    Apr 2009
    Location
    Nashville, NC
    Posts
    5,332
    Thanked
    9 times
    Spread sheet please Just dont kill me for asking

    A lot of data here. I like!!
    Last edited by Archer; 11-04-2009 at 07:46 AM.
    People that buy OEM systems think Linux was a Charlie Brown character, a registry is something you see at target to buy shower gifts, RAM is a Dodge truck and a hard drive is DC at rush hour.
    Current Active Fleet:
    Daily Driver - Phenom II X4 @ 3.6, 8GB Ram, 890GX GFX Bedroom PC - Athlon II X4 @ 3.6, 8GB Ram, 790GX GFX
    Entertainment Room HTPC & Madia/File Server - Pentium G6950 @ 3.5, 4GB Ram, On Chip GFX Living Room HTPC - i5 661 @3.7, 10GB Ram, 6770 GFX
    Entertainment Room Cinema - Brazos E350, 4GB Ram, On Chip GFX (Projector) Game Rig - i5 2500K @ 4.5, 12GB Ram, 465GTX + 9800GT (PhysX) using intel SRT




  13. #13
    Newbie
    Join Date
    Apr 2009
    Posts
    1
    nice work!!

    looks like its time for me to upgrade
    Last edited by satansangel114; 11-04-2009 at 07:27 AM.

  14. #14
    KTE
    KTE is offline
    Whiz Kid
    Join Date
    Apr 2009
    Location
    US/UK
    Posts
    321
    Quote Originally Posted by mav2000 View Post
    Hey great review...was just checking it out and the first picture shows core v at 1.5 odd in cpuz and 1.375 in the AMD overdrive..so which one is it?
    That part of AOD shows VID, not voltage. Voltage will be closer to what CPU-Z shows.
    There is a widespread misapprehension that human beings behave logically, but many of society's ills illustrate that most of us are driven instead by our primitive instincts and emotions - Professor Philip Steer

  15. #15
    TR Blogger
    Join Date
    Sep 2009
    Posts
    16
    Lookin good! Great to see AMD pushin 4+Ghz on aircooling.

    Just finished a 965BE gaming rig build for a friend. 3.7Ghz on the stock cooler was my overclock with it.
